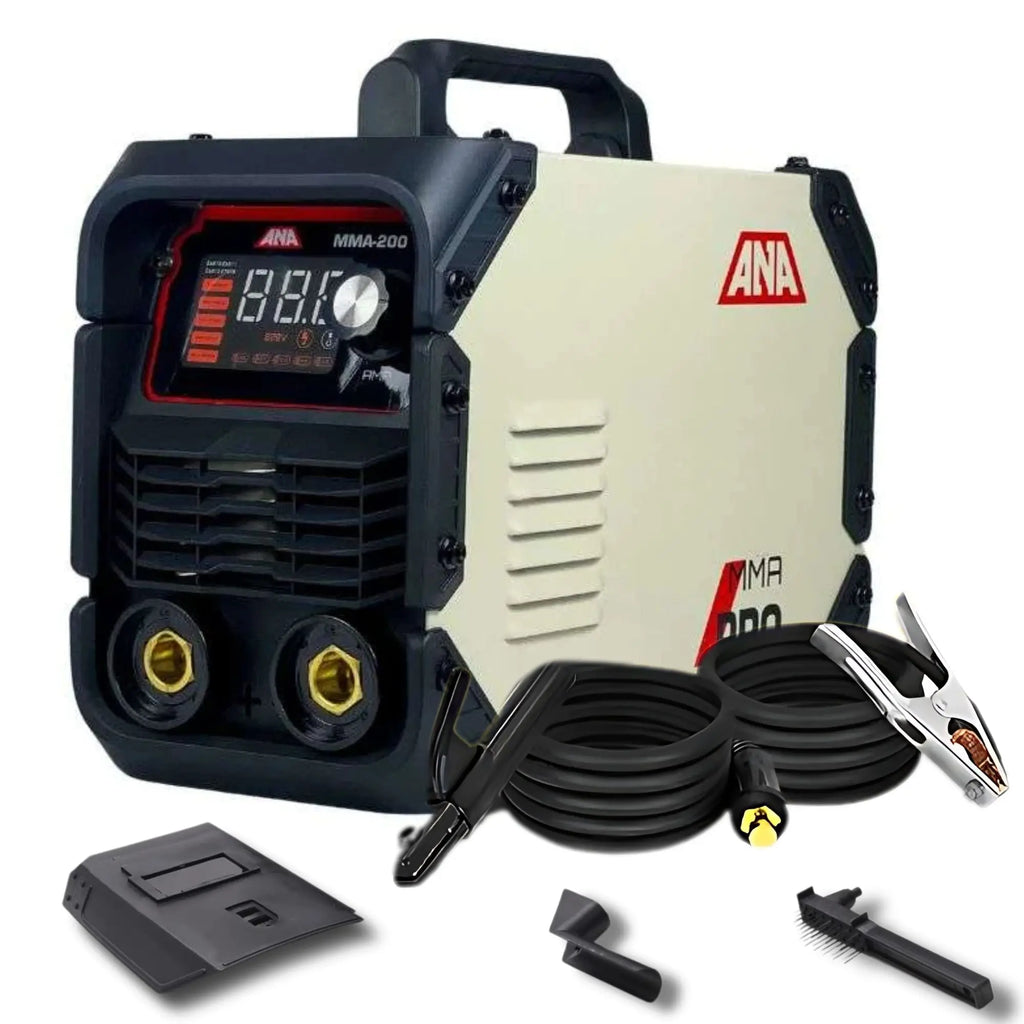

XLNT MMA200 ANA 200A MMA ARC Inverter Welding Machine

The XLNT MMA200 ANA is a compact inverter welding machine designed for repair welding, metal fabrication, maintenance work and regular workshop applications. It uses listed advanced IGBT inverter technology to provide stable arc output and dependable welding performance.

The machine is marketed with a maximum current rating of 200A and operates on a listed 220V/240V electrical input. It supports a frequency of 50/60Hz and is designed for compatible welding electrodes. The live page lists electrode support from 1.6mm to 3.2mm, while the supplied specification image lists 1.6-2.5mm. This range should be physically confirmed before final publication.

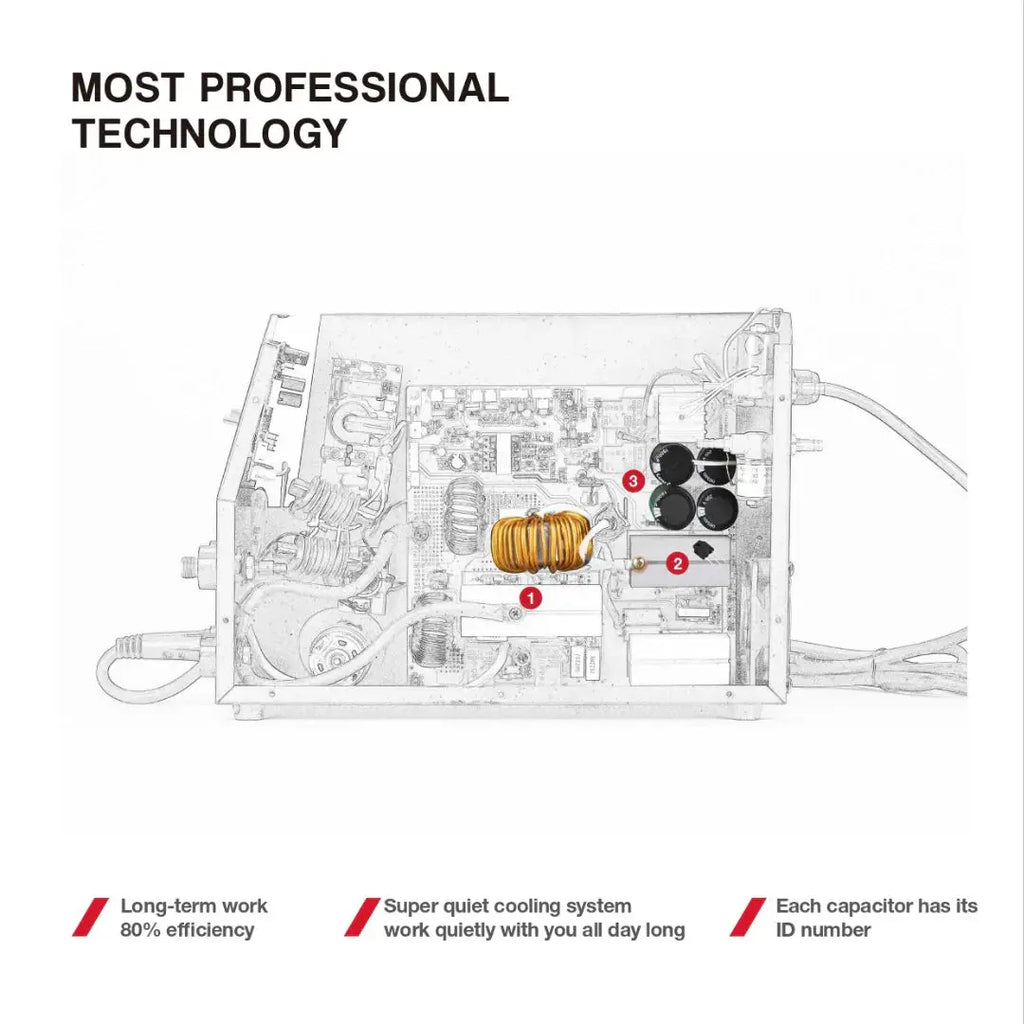

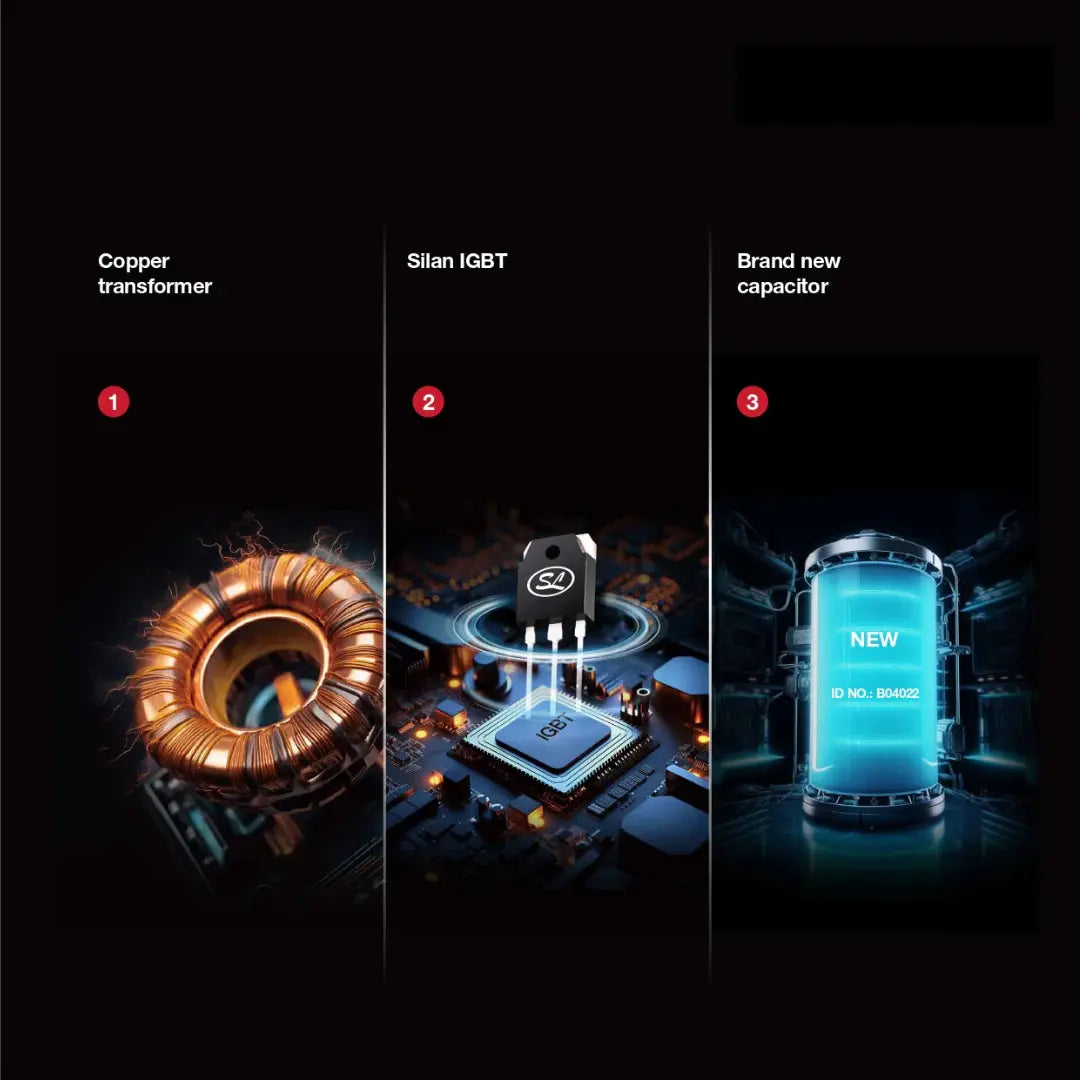

Advanced IGBT Inverter Technology

The XLNT MMA200 ANA is listed with advanced IGBT inverter technology. This electronic inverter system is designed to deliver stable arc output from a compact and portable welding-machine body.

The live page specifically highlights:

• Advanced IGBT inverter
• Stable arc output
• Compact portable construction
• Support for compatible welding electrodes

These features position the machine for home users, workshops and maintenance teams.

200A Maximum Listed Current

The supplied image states a current rating of 200A, matching the products 200AMP title.

Use the following technically cautious wording:

Maximum Listed Welding Current: 200A

Do not claim continuous 200A output unless the manufacturer provides a duty-cycle chart showing how long the machine can operate at 200A.

MMA and ARC Welding Applications

The model is identified as MMA200 ANA and is categorised as an ARC welding machine in the supplied image. This makes the product relevant for compatible manual electrode-welding applications.

The welding process may also be described as:

• MMA welding
• ARC welding
• Manual electrode welding
• Stick welding

Do not add other welding processes such as MIG or TIG unless the machine specifically supports them.

Digital Display and Current Control

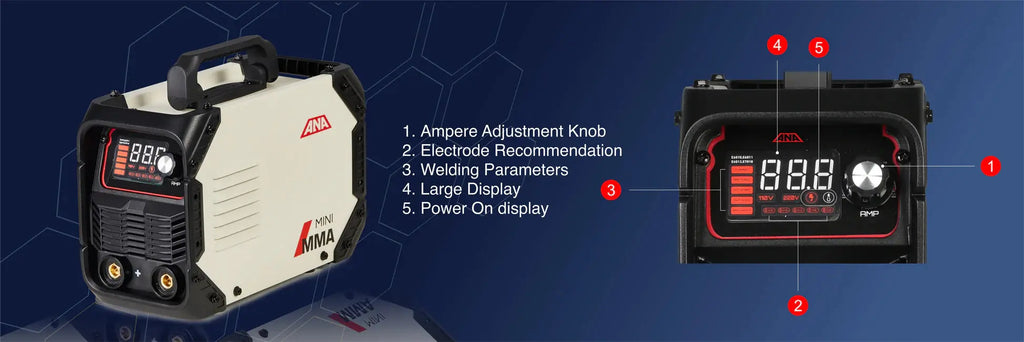

The machine shown in the supplied image appears to include a front digital display and adjustment control.

The digital display may help the operator view the selected welding-current setting. Confirm whether it shows:

• Selected amperage
• Actual welding current
• Error codes
• Voltage
• Thermal warning information

Until verified, use:

Digital Current-Setting Display

Avoid claiming real-time current accuracy unless tested or documented.

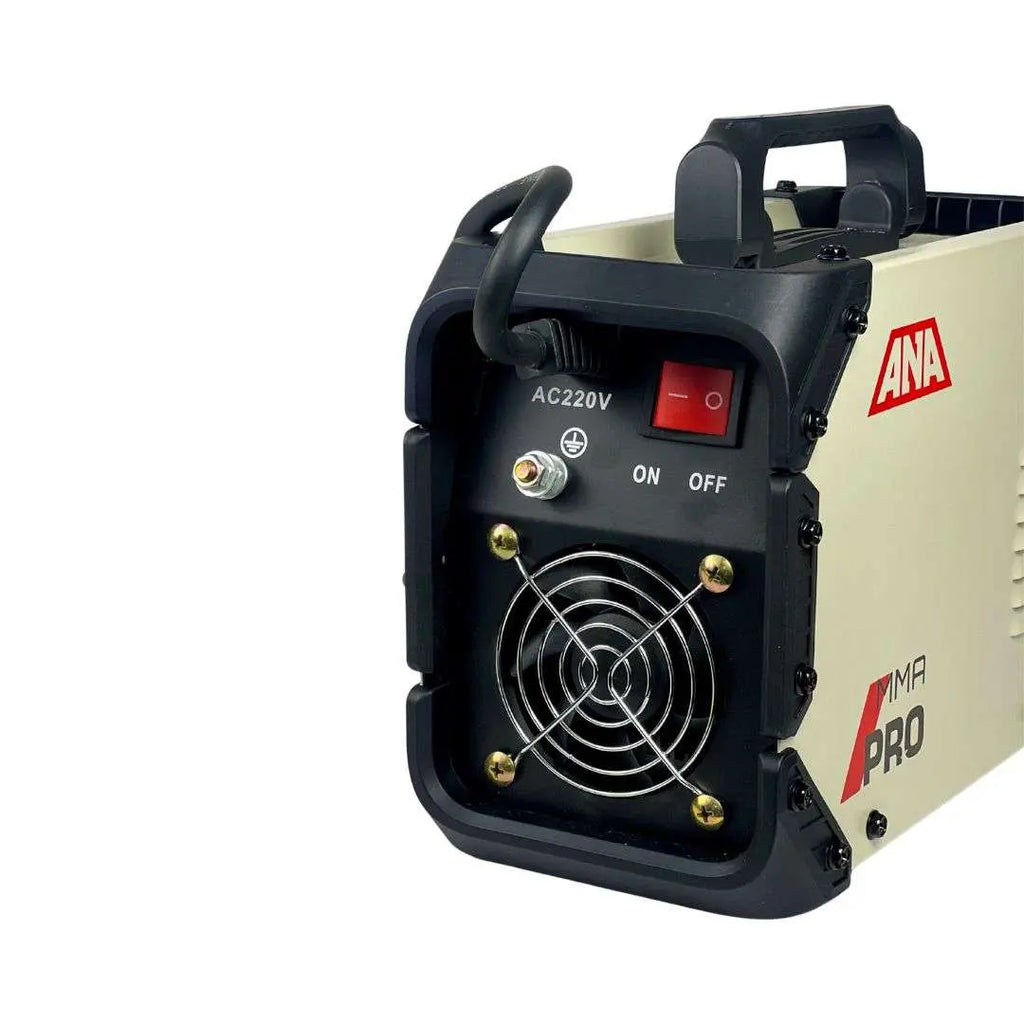

220V Electrical Input

The supplied image lists a voltage of 220V and a frequency of 50Hz. The live page lists a broader input specification of 220V/240V and 50/60Hz.

Before operation, ensure that the following are suitable for the machine:

• Electrical socket
• Plug
• Circuit breaker
• Earthing system
• Extension cable
• Supply voltage

The rated input current and recommended MCB are not currently published. These should be confirmed from the machine rating label.

Listed 40% Duty Cycle

The supplied image lists a duty cycle of 40%.

Duty cycle indicates how long the welding machine may operate within a fixed test period before requiring cooling.

The image does not state:

• The welding current at which 40% was tested
• The test temperature
• The testing standard
• The required cooling duration

Use:

Listed Duty Cycle: 40%

Do not claim ‚200A at 40% duty cycle‚unless the manufacturer confirms it.

Electrode Compatibility

The live website lists support for 1.6-3.2mm electrodes. The supplied specification image lists 1.6-2.5mm.

Until physically confirmed, the safest wording is:

Compatible Electrode Diameter: Verify before purchase

After verification, publish one consistent range across:

• Product title
• Technical specifications
• Product description
• FAQs
• Images
• Structured data
• Marketplace listings

Electrode suitability also depends on:

• Electrode type
• Material thickness
• Welding position
• Current setting
• Electrical-supply stability
• Duty-cycle limitations

35–50 Welding Cable Connectors

The supplied image lists a connector specification of 35–50.

This likely refers to the welding output-terminal connector size. Confirm whether the machine uses:

• DINSE 35‚Äì50 connectors
• Another connector standard
• Positive and negative quick connectors

After verification, use:

Welding Cable Connector: DINSE 35–50

Do not publish “DINSE” until the connector type is confirmed.

1.5m Power Cable

The supplied image appears to state “Power: 1.5m wire.” This likely means that the power cable is approximately 1.5 metres long.

Recommended wording after verification:

Power Cable Length: 1.5m

Do not describe “1.5m wire” as electrical power.

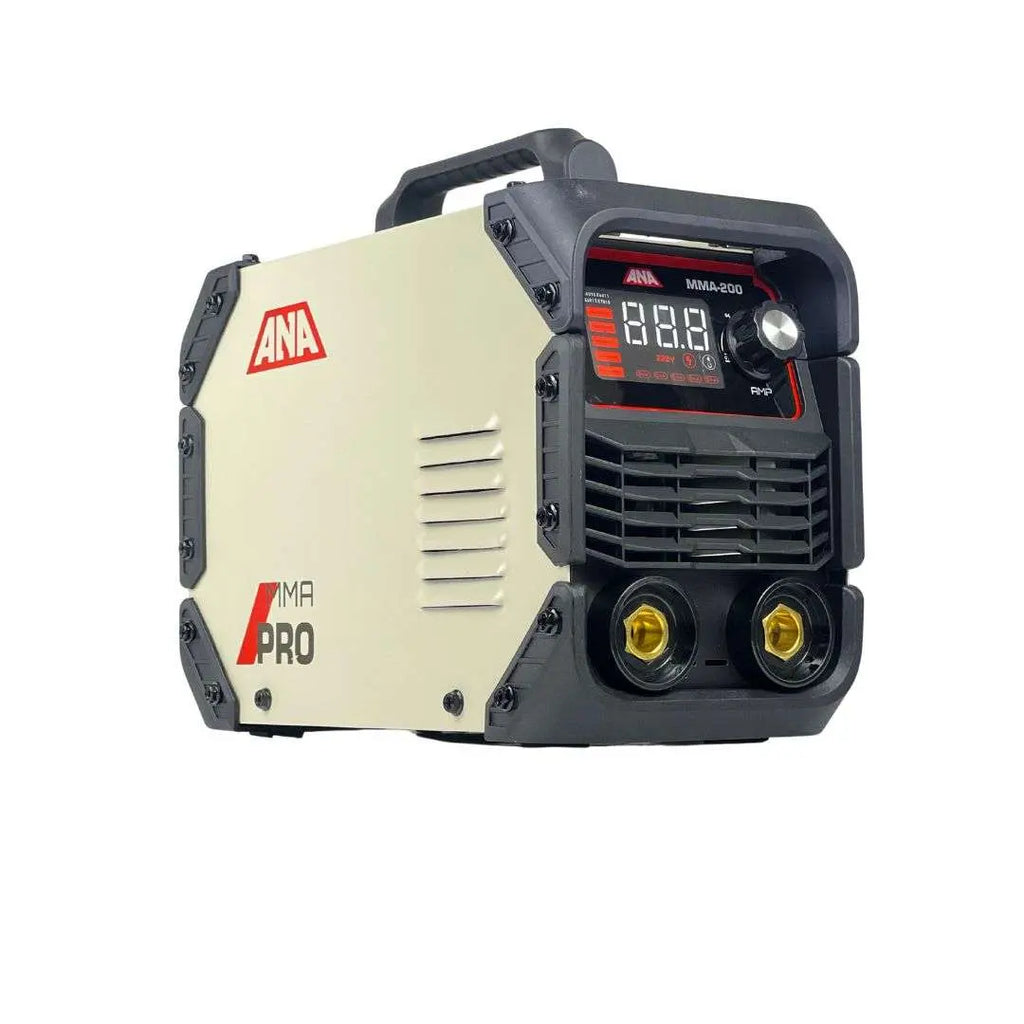

Compact Plastic and Iron Body

The current product page lists a plastic-and-iron body construction with dimensions of 35.5 √ó 16.5 √ó 28cm. The combination is intended to provide a compact body with structural protection around the inverter components.

The machine also includes an integrated carrying handle for easier movement between workshops, repair locations and suitable on-site jobs.

Suitable for Repair Welding

Repair welding is listed as one of the machine’s intended applications. It can be used for compatible general metal-repair and maintenance tasks, subject to electrode size, metal thickness and duty-cycle limitations.

Suitable for Fabrication Work

The XLNT MMA200 ANA is positioned for suitable fabrication applications. Adjustable welding output and portable construction make it relevant for smaller fabrication workshops and maintenance teams.

Suitable for Workshop Welding

Workshop welding is another use case listed on the product page. The machine may be used for suitable daily repair, fabrication and maintenance tasks while following the verified duty-cycle limitation.

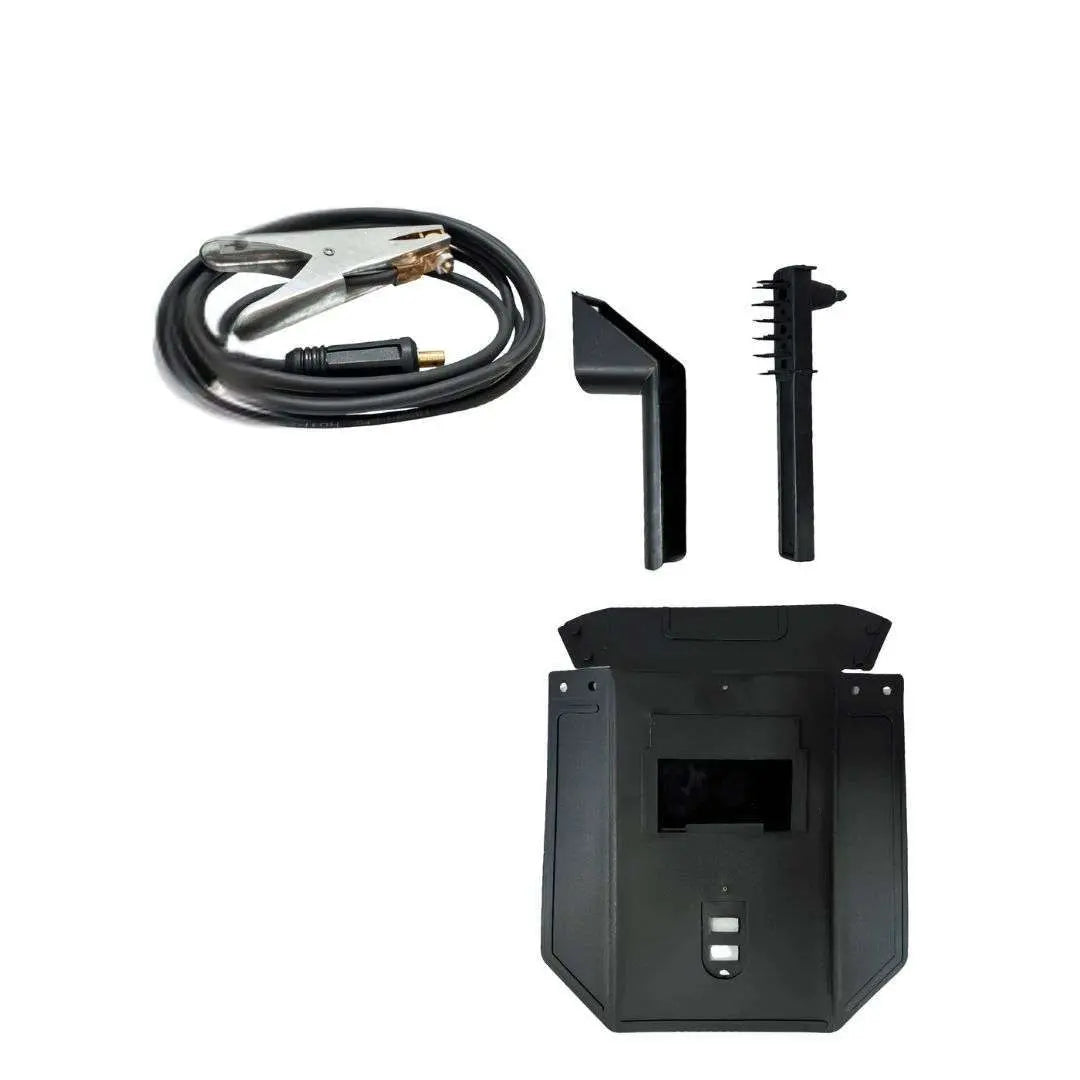

Electrode Holder Included

The live page confirms that an electrode holder is included in the package. Inspect the holder, insulation and cable before every use.

Do not operate the machine if:

• Cable insulation is cut
• Conductive material is exposed
• Holder jaws are damaged
• Connector is loose
• Cable is overheated

Earth Clamp Included

The package also includes an earth clamp. Connect it to clean, bare metal near the welding area for a reliable electrical connection.

Remove paint, rust, grease and surface contamination from the clamp point where necessary.

Welding Mask Included

The current page lists a welding mask as included. The exact mask type, shade and safety rating are not stated.

Verify whether the included item is:

• Handheld welding shield
• Basic face mask
• Head-mounted welding helmet
• Auto-darkening helmet

Do not describe it as an auto-darkening helmet unless verified.

Wire Brush Included

A wire brush is listed in the package. It may be used for suitable surface cleaning and slag removal after welding.

Wear eye protection while brushing welded metal because loose particles and slag may become airborne.

How to Use

1. Place the welding machine on a stable, dry and ventilated surface.
2. Confirm that the machine is switched off and disconnected.
3. Inspect the power cable, welding terminals, earth clamp and electrode holder.
4. Connect the earth clamp securely to clean, bare metal.
5. Insert a compatible welding electrode into the electrode holder.
6. Connect the machine to a suitable electrical supply.
7. Select the required welding-current setting.
8. Wear approved welding safety equipment.
9. Lower the welding mask before striking the arc.
10. Begin welding using the correct electrode angle and arc length.
11. Monitor the machine temperature and duty-cycle limitation.
12. Allow the machine to cool when required.
13. Switch off and disconnect the machine after use.

Safety Instructions

• Wear an approved welding helmet or shield.
• Wear flame-resistant welding gloves and protective clothing.
• Use suitable safety footwear.
• Ensure adequate ventilation or fume extraction.
• Keep flammable materials away from the welding area.
• Never weld sealed tanks or pressurised containers.
• Inspect every power and welding cable before use.
• Use a properly earthed electrical supply.
• Keep the welding machine protected from water.
• Never touch exposed electrical terminals.
• Protect nearby people from welding-arc exposure.
• Keep ventilation openings unobstructed.
• Follow the verified duty-cycle limitation.
• Disconnect the machine before inspection or servicing.
• Internal electrical repairs should be handled by qualified technicians.

Maintenance Instructions

• Keep the machine clean and dry.
• Remove dust from ventilation openings regularly.
• Inspect the power cable and plug before use.
• Check the earth clamp and electrode holder for damage.
• Inspect the welding-terminal connectors.
• Keep the cooling vents unobstructed.
• Do not wash or submerge the machine.
• Store the machine in a dry and clean location.
• Arrange periodic servicing according to usage conditions.
