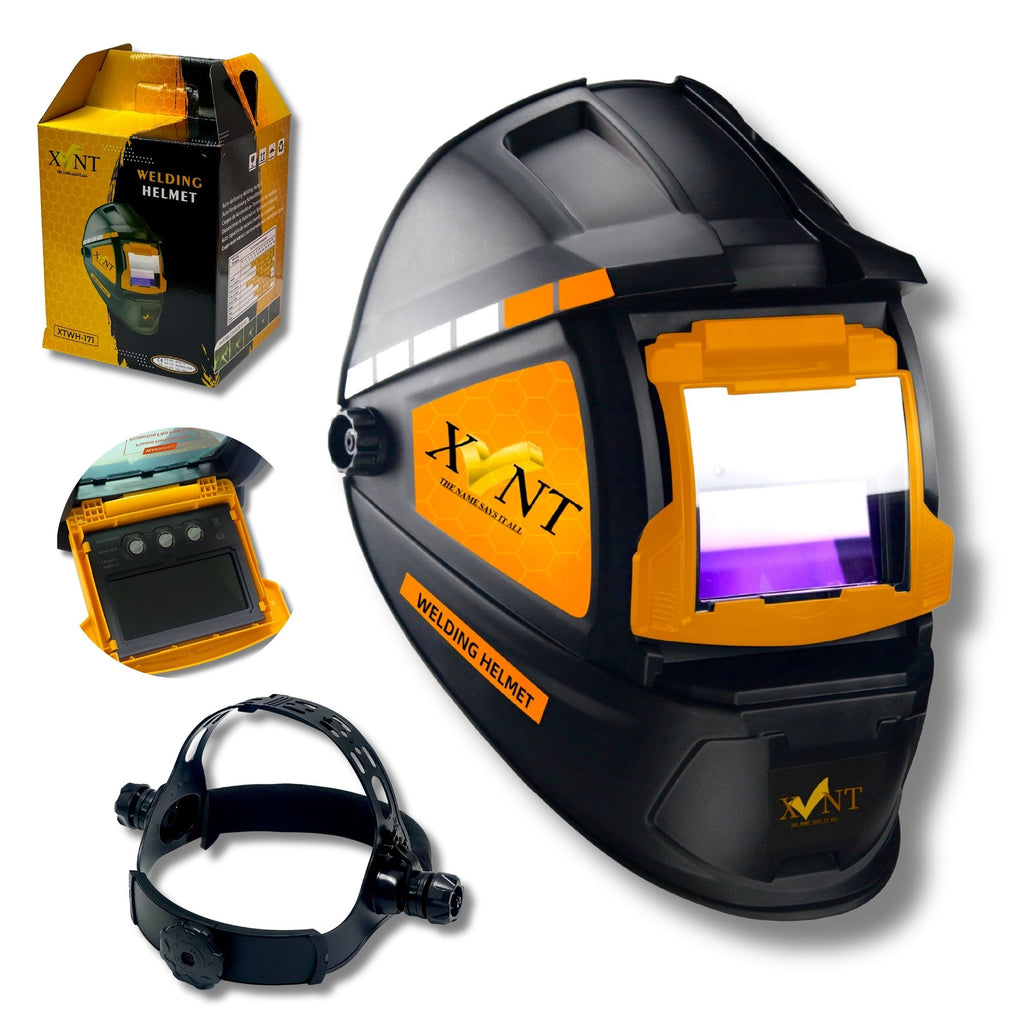

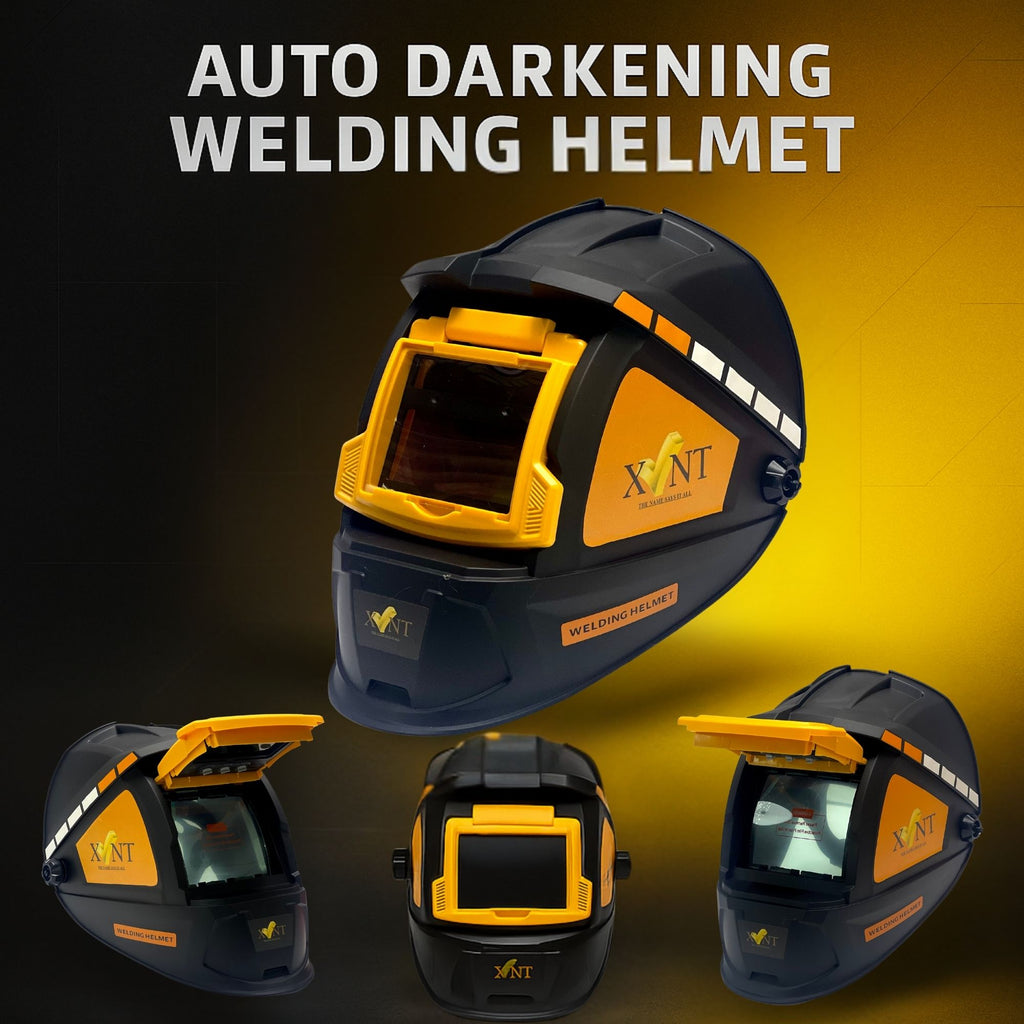

XLNT Auto Darkening Welding Helmet  XTWH-171

The XLNT XTWH-171 Auto Darkening Welding Helmet is designed for professional welders, fabricators and DIY users who require face coverage and automatic lens darkening during suitable welding and cutting applications.

It features a listed DIN 9-13 shade range, two arc sensors, 1/10,000-second switching speed, 100 x 50 mm viewing area and a solar-assisted power system with a 420mAh lithium battery. The product page lists compatibility with MIG welding, TIG welding, MMA welding, plasma cutting and grinding applications.

DIN 9-13 Adjustable Shade Range

The XLNT XTWH-171 has a listed dark-shade range of DIN 9-13. This allows the user to select a suitable darkness level according to the verified welding process, welding current and working conditions.

The correct shade depends on:

• Welding process
• Welding amperage
• Arc brightness
• Electrode or wire type
• Material being welded
• User comfort
• Applicable workplace safety requirements

The helmet should not be used outside its approved shade and application range.

Fast 1/10,000-Second Switching Speed

The auto-darkening filter has a listed switching speed of 1/10,000 second. The lens is intended to change from its lighter state to the selected darker shade when the arc sensors detect a welding arc.

Actual performance can depend on:

• Sensor visibility
• Battery charge
• Solar-cell condition
• Working temperature
• Lens cleanliness
• Arc position
• Welding environment

Keep the sensors and front filter area clean and unobstructed.

Dual Arc Sensors

The helmet is equipped with two listed arc sensors. Dual sensors help the auto-darkening system detect a welding arc from suitable working positions.

Do not cover the sensors with:

• Stickers
• Paint
• Welding spatter
• Dust
• Protective film
• Tools or accessories

The page does not state whether sensitivity adjustment is available. This should be verified before advertising adjustable sensitivity.

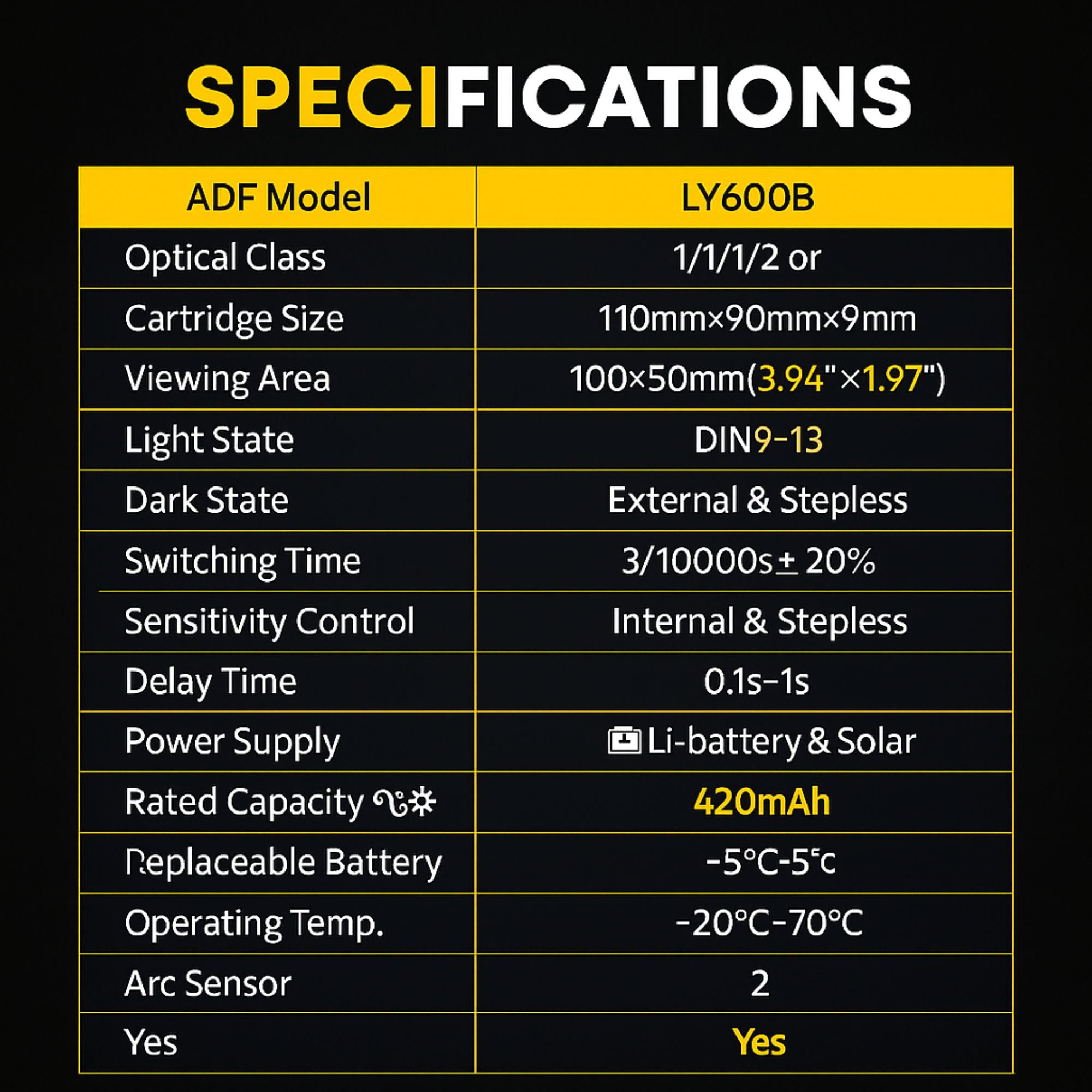

Optical Classification 1/1/1/2

The XLNT XTWH-171 has a listed optical classification of 1/1/1/2. This specification should be included in the technical table because it is an important comparison point for auto-darkening welding filters.

Avoid making additional optical-performance comparisons unless the classification and testing standard are confirmed on the filter cartridge or manufacturer documentation.

100 × 50 mm Viewing Area

The helmet provides a listed viewing area of 100 × 50 mm. The viewing window is designed to give the operator visibility of the weld area while maintaining helmet coverage during suitable welding work.

For better visibility:

• Clean the outer lens regularly
• Replace badly scratched protective lenses
• Keep the internal lens clean
• Remove protective film before use
• Check the viewing area before every welding session

Solar and Lithium-Battery Power

The auto-darkening filter uses a listed solar-assisted power supply combined with a lithium battery. Battery capacity is listed as 420mAh.

The page does not confirm:

• Whether the lithium battery is replaceable
• Battery model or size
• Expected battery life
• Charging method
• Low-battery indicator
• Automatic power-on function
• Automatic power-off function

These should be checked before publishing detailed battery-maintenance claims.

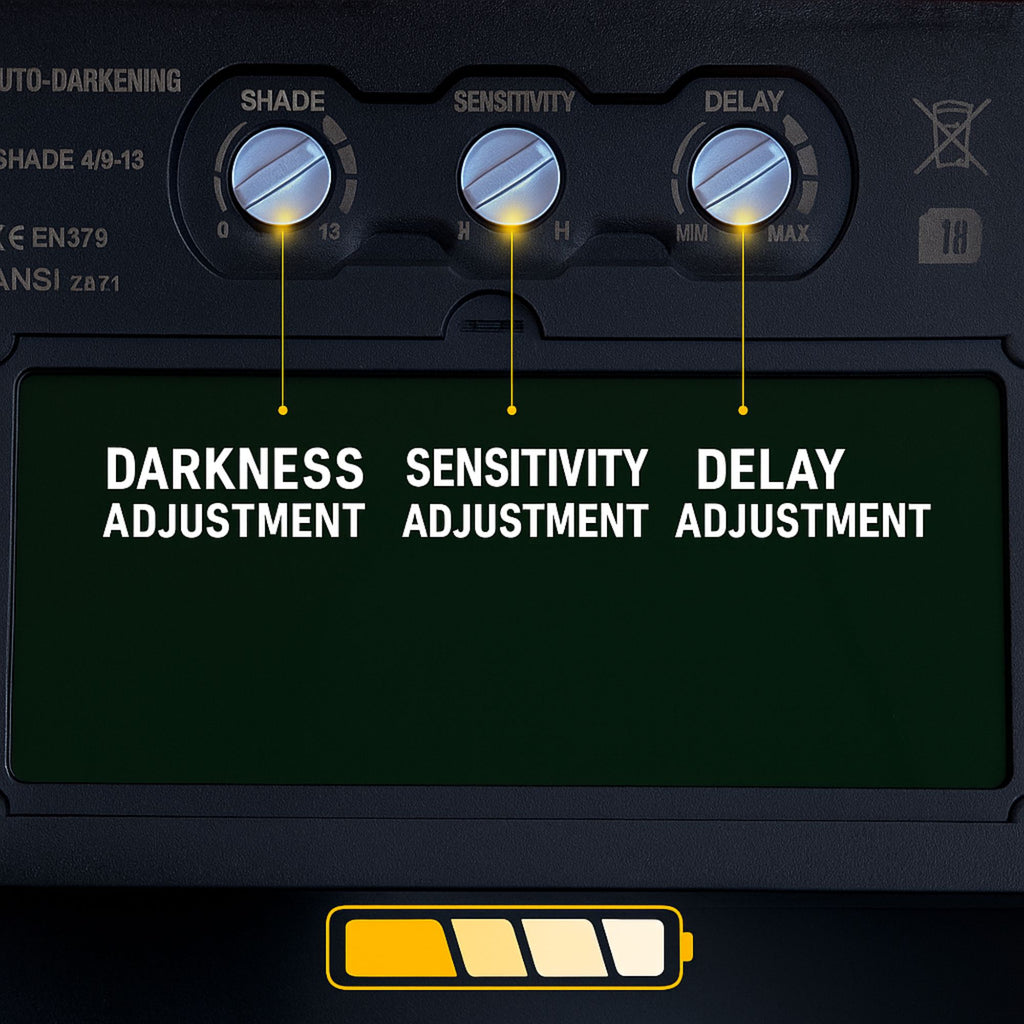

Listed Delay Time of 0.1-1 Second

The product page lists a delay-time range of 0.1-1 second. Delay time generally relates to how long the lens remains dark after the welding arc stops.

Confirm whether the delay is manually adjustable and identify the control location before advertising it as an adjustable-delay helmet.

Operating Temperature

The listed operating-temperature range is -20∞C to 70∞C.

The helmet and auto-darkening filter should still be stored according to the manufacturer's instructions and protected from:

• Excessive heat
• Direct flame
• Water
• High-impact damage
• Corrosive chemicals
• Heavy welding spatter
• Prolonged direct sunlight during storage

Suitable for MIG Welding

MIG welding is one of the applications listed on the product page. The user should select an appropriate shade according to welding current and applicable safety guidance.

Suitable for TIG Welding

The page also lists TIG welding as an intended use. However, the minimum TIG amperage at which the sensors operate reliably is not published. This is an important specification to verify, especially for low-amperage TIG welding.

Suitable for MMA Welding

MMA welding is listed as a supported application. The DIN 9-13 shade range can be selected according to the welding current and electrode application within the helmet's verified operating limits.

Suitable for Plasma Cutting

Plasma cutting is another listed use case. Select an appropriate shade and wear any additional protective equipment required for the specific cutting application.

Grinding Application Requires Clarification

The product page lists grinding as a use case, but it does not clearly confirm:

• Dedicated grinding mode
• Light-state shade
• Grind-mode switch
• Whether auto-darkening is disabled during grinding
• Location of the grinding control

Verify the dedicated grinding mode before promoting this feature prominently.

Suitable for Professional Welders and Fabricators

The live page positions the helmet for professional welders, fabricators and DIY users. Its listed auto-darkening filter, dual sensors and wide viewing area make it relevant for suitable workshop, fabrication and maintenance applications.

How to Use

1. Inspect the helmet shell, headgear, viewing lens and auto-darkening filter.
2. Remove any protective film from the inner and outer protective lenses.
3. Confirm that the battery and solar-assisted system are functioning.
4. Check the auto-darkening response before beginning welding.

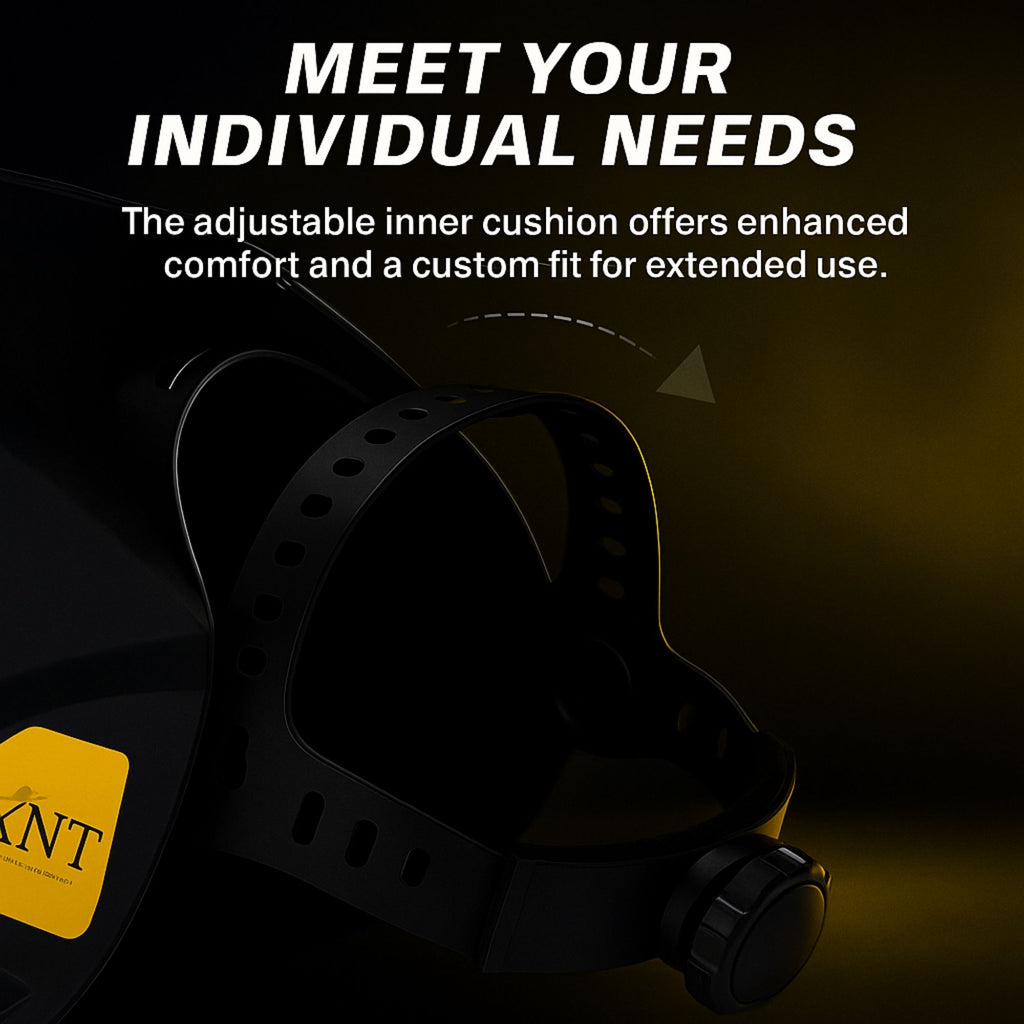

5. Adjust the headgear for a secure and comfortable fit.
6. Select the appropriate DIN shade for the welding process.
7. Confirm that the sensors are clean and unobstructed.
8. Lower the helmet before striking the welding arc.
9. Stop work immediately if the lens fails to darken correctly.
10. Clean and inspect the helmet after use.

Safety Instructions

• Inspect the auto-darkening filter before every use.
• Do not weld if the lens fails to darken.
• Select the correct shade for the welding process and amperage.
• Replace cracked, damaged or deeply scratched protective lenses.
• Keep the two arc sensors clean and unobstructed.
• Do not use the helmet for laser welding or other unapproved applications.
• Do not immerse the helmet or filter cartridge in water.
• Do not expose the helmet to direct flame.
• Wear suitable welding gloves and flame-resistant clothing.
• Use respiratory protection or fume extraction where required.
• Keep the helmet away from corrosive chemicals.
• Replace damaged headgear or shell components.
• Follow workplace welding-safety requirements.
• Do not modify the auto-darkening filter cartridge.

Cleaning and Maintenance

• Clean the helmet shell with a soft cloth.
• Keep the viewing area free from dust and welding residue.
• Do not use harsh solvents on the auto-darkening filter.
• Replace scratched outer protective lenses.
• Inspect the inner protective lens regularly.
• Check the headgear adjustment and tightening points.
• Keep solar cells and arc sensors clean.
• Store the helmet in a clean, dry location.
• Avoid placing heavy tools on the helmet.
• Confirm battery condition according to the manufacturer‚Äôs instructions.
