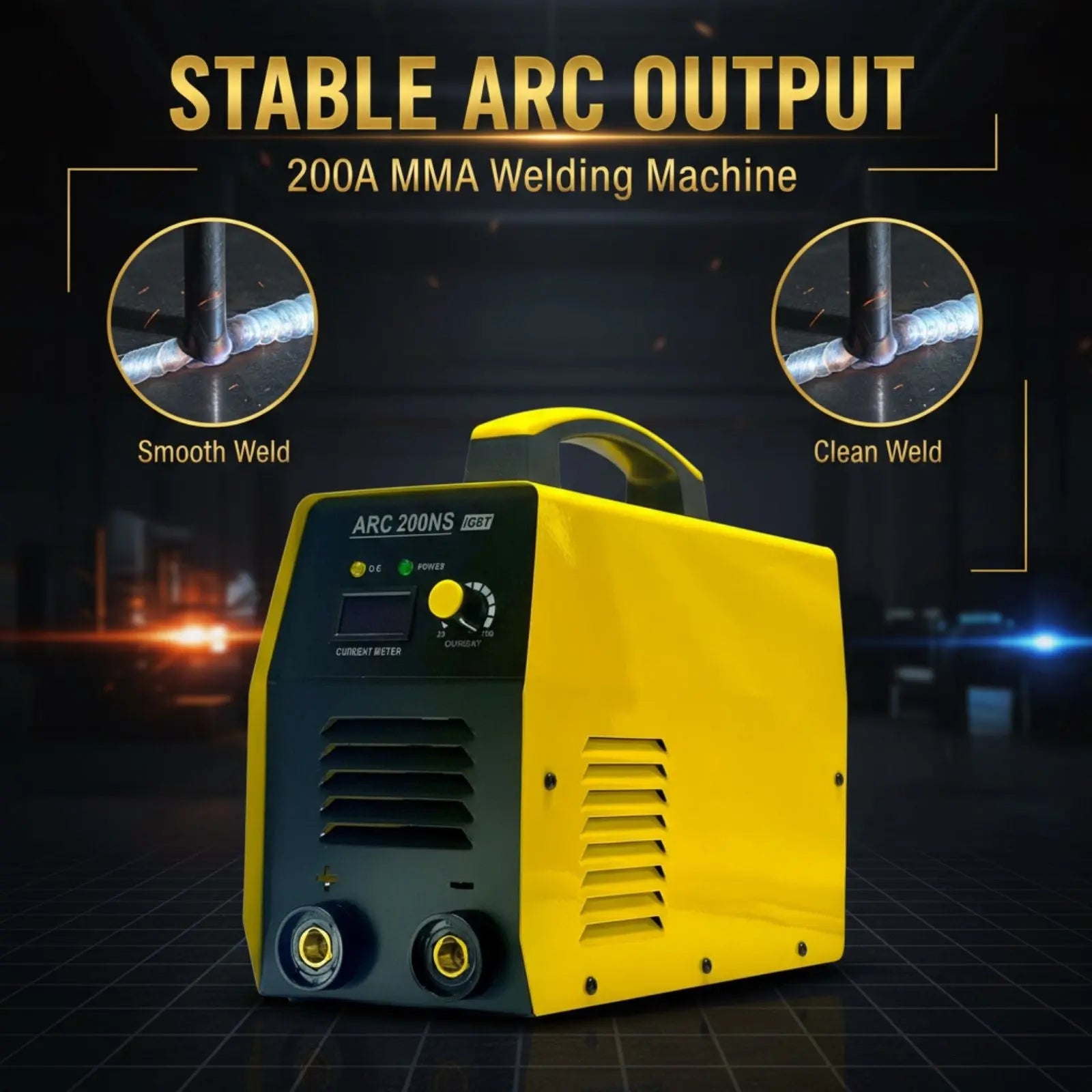

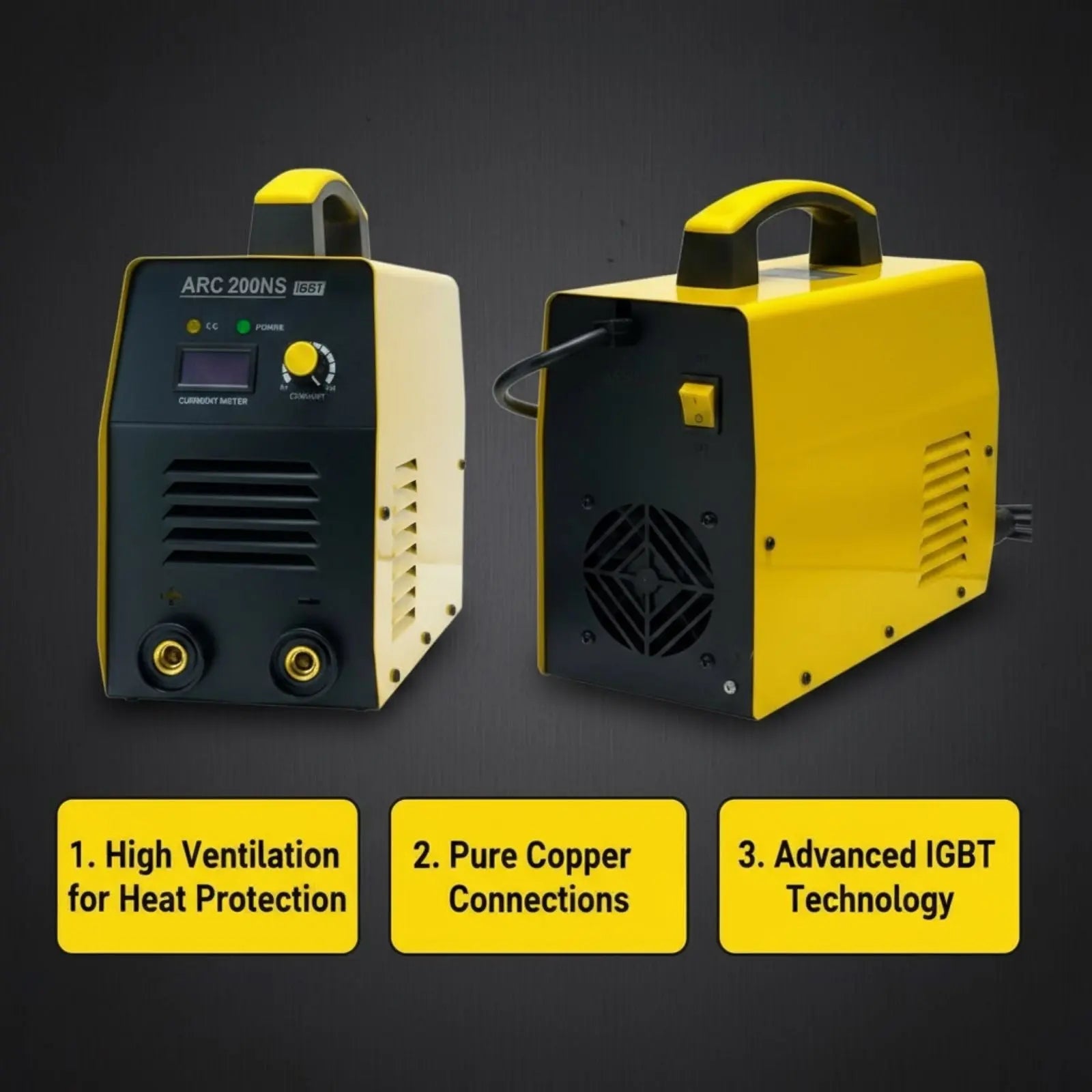

XLNT ARC200NS 200A ARC Inverter Welding Machine
The XLNT ARC200NS is a compact ARC inverter welding machine designed for repair welding, metal fabrication, maintenance work, DIY metal projects and suitable on-site welding applications.
It provides a published adjustable output-current range of 30–200A, allowing the operator to select a suitable welding current according to the electrode, metal thickness, joint design and welding requirement.
The machine operates on a 220V ±15% electrical supply and supports a 50/60Hz frequency. It also features a listed 60% duty cycle, 80% efficiency, 0.73 power factor, IP21 ingress protection and Class F insulation. The current website lists a net weight of 5.28kg and dimensions of 375 × 155 × 232mm.
30–200A Adjustable Welding Current
The XLNT ARC200NS provides a listed output-current range of 30–200A. Adjustable current helps the operator choose an appropriate output for different compatible welding applications.
The correct current setting depends on:
- Electrode diameter
- Electrode type
- Base-metal thickness
- Joint design
- Welding position
- Material condition
- Electrical-supply stability
The supported electrode types and diameter range are not currently published. These should be confirmed before adding an electrode-selection chart.
200A Maximum Listed Output
The product is marketed as a 200A ARC welding machine, and the live specification section lists a maximum output of 200A.
Use:
Maximum Listed Welding Current: 200A
Do not claim that the machine can weld continuously at 200A unless the manufacturer provides a duty-cycle chart showing the operating duration at that current.
220V Electrical Operation
The welding machine operates on a listed input voltage of 220V ±15% at 50/60Hz.
Before using the machine, confirm that the electrical socket, plug, earthing arrangement, circuit breaker and extension cable are suitable for its actual rated input current.
The website does not currently display the rated input current. This should be verified from the machine rating label before recommending an MCB, socket or extension-cable size.
Listed 60% Duty Cycle
The XLNT ARC200NS has a listed duty cycle of 60%.
Duty cycle indicates how long a welding machine can operate within a specified test period before requiring cooling.
The current information does not state:
- The output current at which 60% was measured
- The test temperature
- The applicable testing standard
- The required cooling period
The safest specification wording is:
Listed Duty Cycle: 60%
Do not claim “200A at 60% duty cycle” without manufacturer confirmation.
Listed 80% Efficiency
The welding machine has a listed efficiency of 80% and a power factor of 0.73.
These figures should be included in the technical specifications but should not be used for direct comparisons with other welding machines unless all models were tested under equivalent conditions.
59V No-Load Voltage
The ARC200NS has a listed no-load voltage of 59V and a rated output voltage of 28V. The no-load loss is listed as 40W.
No-load voltage is present when the welding machine is switched on but an arc is not being produced. Never touch exposed terminals or conductive welding components while the machine is connected to power.
Compact and Lightweight Body
The welding machine has a listed net weight of 5.28kg. Its compact construction and integrated carrying handle support easier transportation between workshops, maintenance locations and on-site welding jobs.
The current website lists dimensions of 375 √ó 155 √ó 232mm. Verify whether these are machine dimensions or packaging dimensions before final publication.
IP21 Ingress Protection

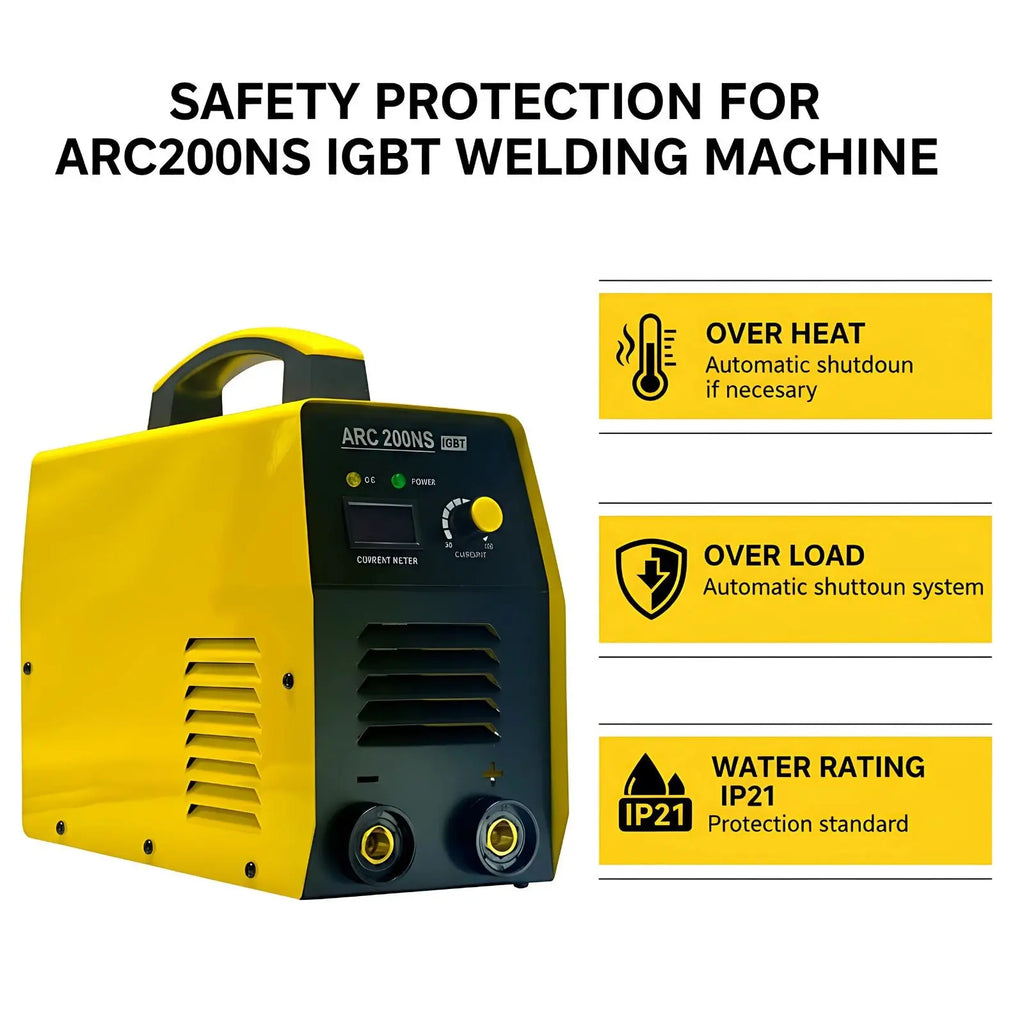

The XLNT ARC200NS has a listed IP21 ingress-protection rating.
IP21 does not mean that the welding machine is waterproof. Keep it protected from:
- Rain
- Standing water
- Water spray
- Wet floors
- Excessive dust
- Conductive metal particles
- Damp storage conditions
Maintain sufficient airflow around the housing and keep the ventilation openings clear during operation.
Class F Insulation
The product has a listed Class F insulation rating.
This specification can be included in the technical table, but it should not be used to claim a particular operating temperature without supporting manufacturer documentation.
Suitable for Repair Welding
The XLNT ARC200NS can be used for suitable repair and maintenance welding jobs.
Actual suitability depends on:
- Compatible electrode
- Material thickness
- Current setting
- Electrical supply
- Welding technique
- Duty-cycle limitations

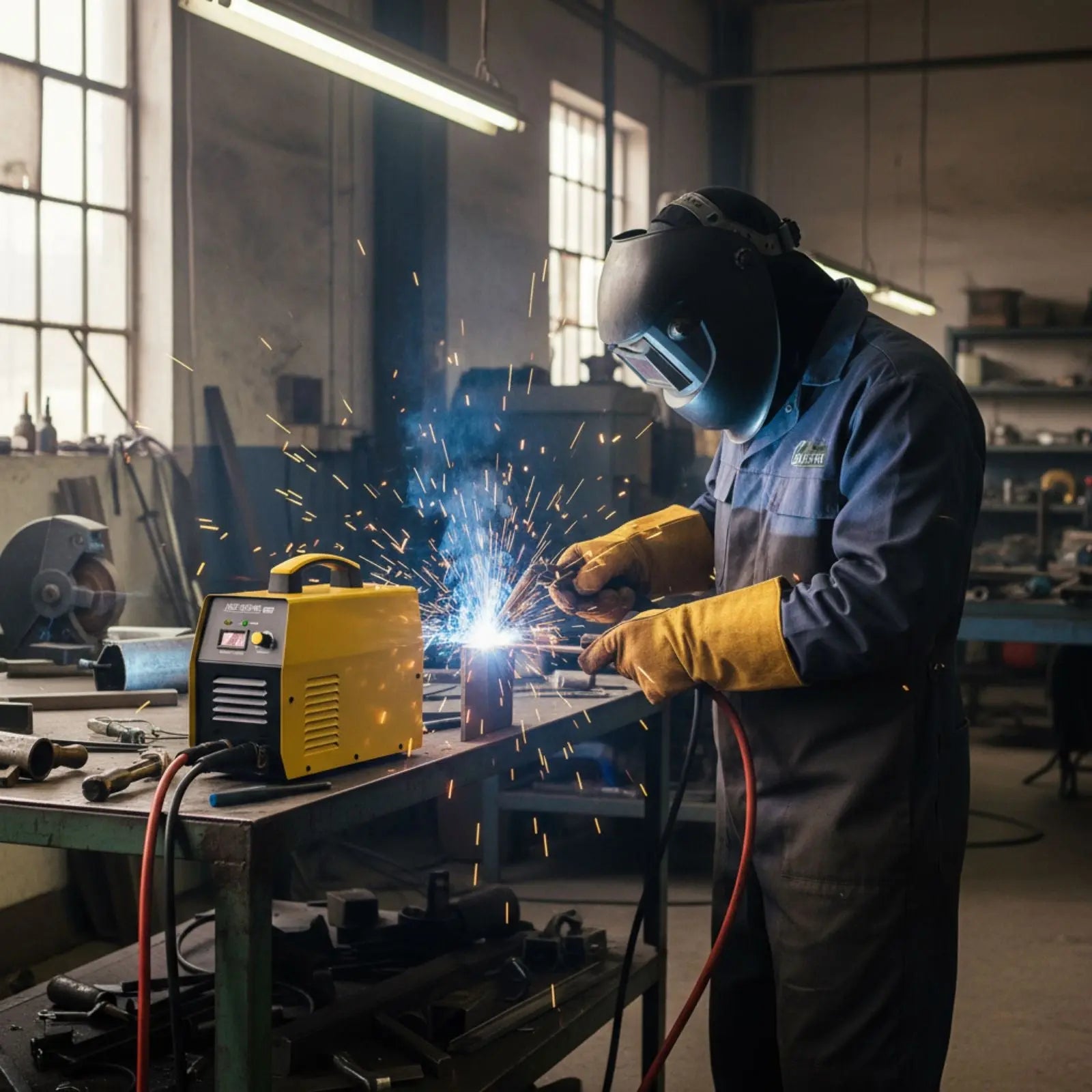

Suitable for Fabrication Work
The adjustable 30–200A output makes the machine suitable for compatible fabrication work, general workshop welding and maintenance applications.
Electrode size, metal thickness and duty-cycle requirements should be checked before beginning each welding job.

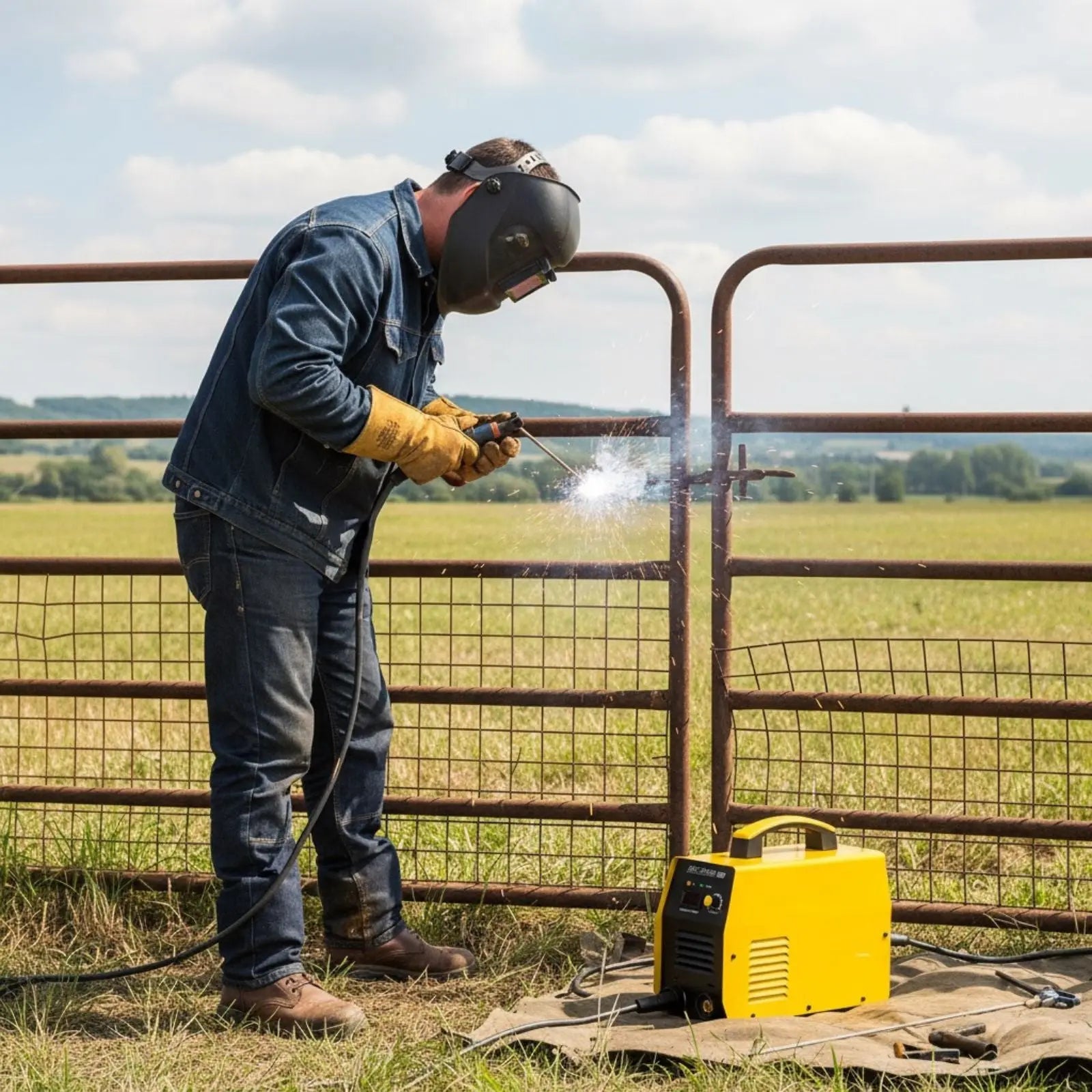

Suitable for On-Site Welding
The live product page positions the ARC200NS for mobile welders and on-site welding applications. Its listed 5.28kg body supports easier movement between working locations.
A suitable power supply and correctly rated extension cable are especially important when operating away from a permanent workshop connection.

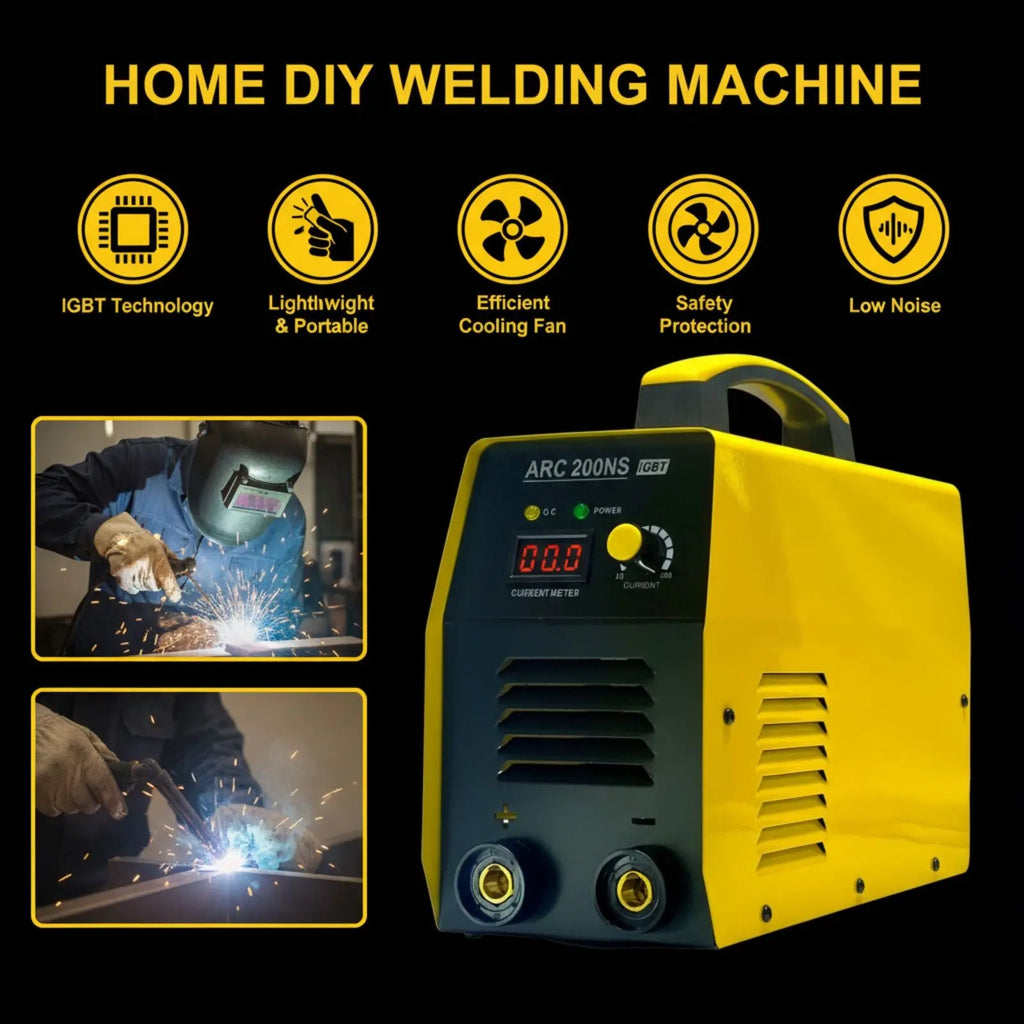

Suitable for DIY Metal Projects
The current page also identifies DIY metal projects as a use case. Operators should still have the required welding knowledge, protective equipment and safe working environment before using the machine.

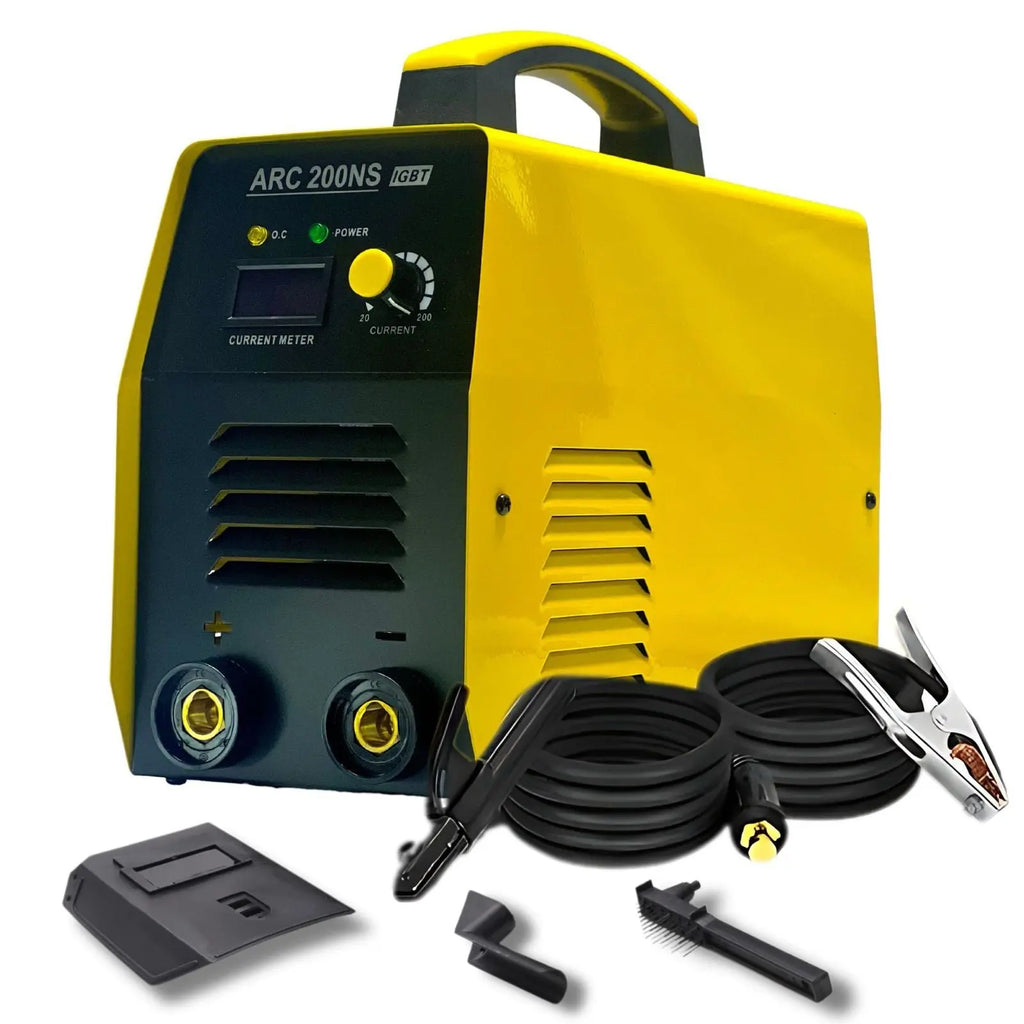

Earth Clamp Included
The package includes an earth clamp and cable.
The supplied image appears to indicate:
Cable Length: 1.2m
Cable Size: 16mm²
Clamp Rating: 300A
However, the live page lists a 3m earth-clamp cable. Physically confirm the actual supplied cable before publishing its length.
Attach the earth clamp to clean, bare metal close to the welding area. Paint, rust, grease and contamination may weaken the electrical connection.
Electrode Holder Included
The package also includes an electrode holder and cable.
The supplied image appears to indicate:
Cable Length: 1.8m
Cable Size: 16mm²
Electrode Holder Rating: 200A
However, the live page lists a 3m electrode-holder cable. Verify the actual cable before publication.
Inspect the holder, cable insulation, terminal connection and connector before every use.
How to Use
- Place the welding machine on a stable, dry and ventilated surface.
- Make sure the machine is switched off and disconnected from power.
- Inspect the power cable, earth clamp, electrode holder and welding cables.
- Connect the earth clamp securely to clean, bare metal.
- Insert a compatible welding electrode into the electrode holder.
- Connect the machine to an appropriate 220V electrical supply.
- Select the required welding-current setting.
- Wear approved welding personal protective equipment.
- Start welding using a suitable electrode angle and arc length.
- Monitor the machine temperature and duty-cycle limitation.
- Allow the machine to cool when necessary.
- Switch off and disconnect the welding machine after use.
Safety Instructions
- Wear an approved welding helmet with the correct shade.
- Wear flame-resistant gloves and protective clothing.
- Use suitable safety footwear.
- Ensure adequate ventilation or welding-fume extraction.
- Keep flammable materials away from the welding area.
- Never weld sealed containers, fuel tanks or pressurised vessels.
- Inspect electrical and welding cables before every use.
- Use a properly earthed electrical supply.
- Keep the welding machine dry.
- Never touch exposed electrical terminals.
- Protect nearby people from welding-arc exposure.
- Keep ventilation openings clean and unobstructed.
- Follow the listed duty-cycle limitation.
- Disconnect the machine before inspection or servicing.
- Internal repairs should be performed by qualified technicians.
Maintenance Instructions
- Keep the machine body clean and dry.
- Remove dust from the ventilation openings regularly.
- Inspect the power cable and plug before use.
- Check the earth clamp and electrode holder for damage.
- Inspect welding-terminal connections regularly.
- Do not wash or submerge the machine.
- Store it in a clean and dry location.
- Arrange periodic servicing based on working conditions.
