Choosing the right spray gun nozzle size can make a big difference in paint finish, material control, coverage, and overall spraying performance. A nozzle that is too small may struggle with thicker coatings, while a nozzle that is too large can deliver excessive material and make it harder to achieve a clean finish.
Whether you are painting vehicles, furniture, metal parts, walls, machinery, or other surfaces, understanding spray gun nozzle sizes helps you choose the right setup for the job.
In this guide, we explain common 0.8mm, 1.0mm, 1.2mm, 1.3mm, 1.4mm, and 1.5mm spray gun nozzle sizes, their typical applications, and how to select the right nozzle for your painting work.
What Does Spray Gun Nozzle Size Mean?
The spray gun nozzle size refers to the diameter of the opening through which paint or coating material exits the spray gun.
For example, a 0.8mm nozzle has a smaller opening than a 1.5mm nozzle. A smaller nozzle generally provides more controlled material delivery, while a larger nozzle allows more coating material to pass through.
The correct nozzle size depends on several factors, including:
- Type and thickness of the paint or coating
- Surface being painted
- Required finish quality
- Size of the area being painted
- Spray gun specifications
- Available air pressure and compressor capacity

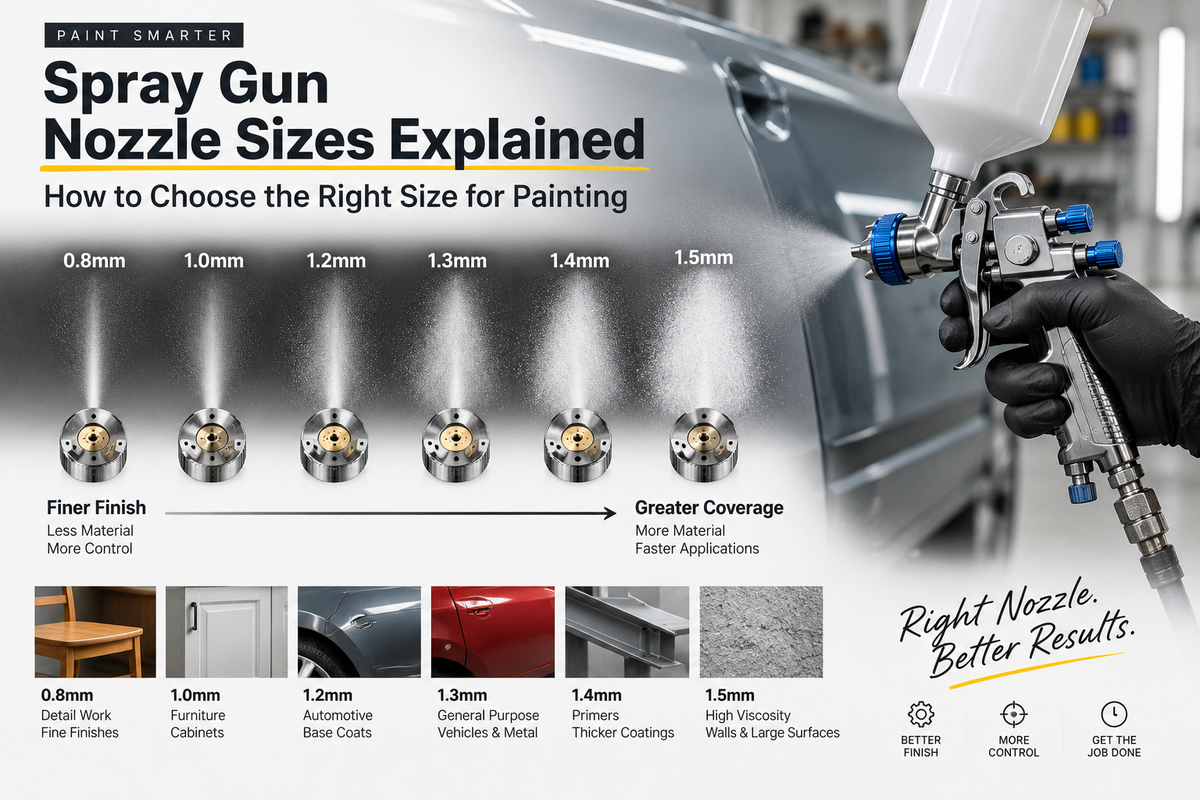

Spray Gun Nozzle Size Chart
| Nozzle Size | Typical Use | Main Advantage |
|---|---|---|
| 0.8mm | Fine-detail and light coatings | Precise material control |
| 1.0mm | Fine finishing and smaller surfaces | Good control and fine atomisation |
| 1.2mm | Fine to medium coatings | Balance between control and coverage |
| 1.3–1.4mm | General-purpose painting | Versatile for many painting jobs |
| 1.5mm | Medium coatings and larger surfaces | Higher material flow and coverage |
0.8mm Spray Gun Nozzle
A 0.8mm spray gun nozzle is useful when precise control and a finer spray are important. Smaller nozzle sizes are generally better suited to thinner materials and smaller or more detailed surfaces.
They can be useful for detailed painting, small components, touch-up work, and applications where excessive material flow needs to be avoided.
However, thicker coatings may not flow easily through a very small nozzle, so always check the coating manufacturer's recommendations and the spray gun specifications before use.
1.0mm Spray Gun Nozzle
A 1.0mm nozzle provides slightly more material flow than a 0.8mm nozzle while still offering good control.
This size can be suitable for fine finishing, smaller surfaces, and applications where you want a relatively controlled spray without moving to a larger general-purpose nozzle.
1.2mm Spray Gun Nozzle
A 1.2mm spray gun nozzle offers a useful balance between fine spraying and material delivery.
It can be considered for applications requiring a finer finish while allowing somewhat more material flow than smaller 0.8mm and 1.0mm nozzles.
The H2000P Pneumatic Air Spray Paint Gun supports a 0.8mm standard nozzle with optional 1.0mm and 1.2mm nozzle sizes, making it a flexible option when different spraying requirements need to be handled.
1.3mm and 1.4mm Spray Gun Nozzles
1.3mm and 1.4mm nozzles are popular general-purpose sizes for many professional painting applications.
They provide a practical balance between atomisation, material flow, and coverage. This makes them suitable for a variety of painting tasks where both finish quality and productivity are important.
For example, the XLNT H827 Air Spray Paint Gun uses a 1.4mm nozzle and has a 600cc paint cup.
The DOOTOL DTQ8010 Pneumatic Paint Spray Gun also uses a 1.4mm standard nozzle and supports optional 1.7mm to 2.0mm nozzle sizes.
1.5mm Spray Gun Nozzle
A 1.5mm spray gun nozzle allows more coating material to pass through than smaller nozzle sizes. This can be useful when working with medium coatings or when greater material delivery and coverage are required.
The DOOTOL DTQ8020 HVLP Pneumatic Spray Gun uses a 1.5mm standard nozzle and has a 650ml paint capacity.
Before selecting a 1.5mm nozzle, make sure the coating and spray gun are suitable for the application. Higher material flow can also require appropriate air supply and correct spraying technique.
How to Choose the Right Spray Gun Nozzle Size
1. Consider the Type of Paint or Coating
The thickness and viscosity of the material are among the most important factors when selecting a nozzle.
Thin coatings generally work better with smaller nozzle sizes, while thicker materials may require a larger nozzle to achieve consistent material flow.
Always follow the coating manufacturer's recommended thinning ratio and spray equipment requirements.
2. Consider the Required Finish
If your priority is a fine and controlled finish, a smaller nozzle may be appropriate depending on the coating.
For general-purpose painting where coverage and productivity are more important, a medium nozzle such as 1.3mm, 1.4mm, or 1.5mm may be more suitable.
3. Consider the Size of the Surface
For small components and detailed work, smaller nozzles can provide better control.
For larger surfaces, a suitable medium-size nozzle can help increase material delivery and reduce the amount of time required to cover the surface.
4. Check Your Spray Gun Specifications
Not every spray gun supports every nozzle size. Before purchasing a replacement nozzle, check the manufacturer's specifications for compatible nozzle sizes.
For example, the H2000P supports 0.8mm, 1.0mm, and 1.2mm configurations, while the DTQ8010 has a 1.4mm standard nozzle with optional 1.7mm to 2.0mm sizes.
5. Check Your Air Supply
Pneumatic spray guns require an appropriate air supply for proper atomisation and spraying performance.
If the compressor cannot supply enough air for the spray gun, you may experience inconsistent spraying, poor atomisation, or an uneven finish.
Check the spray gun's required air pressure and air consumption and make sure your compressor can support the application.
Does a Larger Nozzle Mean More Paint?
Generally, a larger nozzle allows more material to pass through the spray gun.
However, nozzle size should not be selected simply based on the desire for faster paint application. The coating viscosity, air pressure, spray distance, gun settings, and spraying technique all affect the final result.
Using an unnecessarily large nozzle can result in excessive material application, runs, sagging, or an uneven finish.
Spray Gun Nozzle Size vs Paint Thickness
| Material Condition | General Nozzle Direction | Important Consideration |
|---|---|---|
| Thin coating | Smaller nozzle | Prioritise control and atomisation |
| Medium coating | Medium nozzle | Balance coverage and finish |
| Thicker coating | Larger nozzle | Confirm gun and material compatibility |
This is a general guide rather than a universal rule. Always check the coating manufacturer's recommended nozzle size because different paints and coatings can behave differently.
Common Spray Gun Nozzle Selection Mistakes
Using the Largest Nozzle Available
A larger nozzle is not automatically better. Excessive material flow can make it difficult to control the coating and achieve a consistent finish.
Using a Small Nozzle With Thick Paint
A nozzle that is too small for the material can cause poor material flow and inconsistent spraying.
Ignoring Compressor Capacity
A spray gun's air requirements should be considered alongside nozzle size. An undersized compressor may not provide enough air for consistent spraying.
Choosing Based Only on Surface Size
The size of the surface matters, but it is only one part of the decision. Paint type, viscosity, finish requirements, gun specifications, and air supply also need to be considered.
Not Cleaning the Nozzle Properly
Paint residue can partially block the nozzle and affect the spray pattern. Clean the spray gun and nozzle according to the manufacturer's instructions after use.
Which Spray Gun Nozzle Size Should You Use?
As a simple starting point:
- 0.8mm: Consider for fine-detail and controlled spraying applications.
- 1.0mm: Suitable for fine finishing and smaller surfaces where control is important.
- 1.2mm: A useful option between fine spraying and medium material delivery.
- 1.3–1.4mm: A versatile range for many general-purpose painting applications.
- 1.5mm: Useful when greater material flow and coverage are required.
The final choice should always be based on the specific coating, spray gun, surface, and manufacturer's recommendations.
Recommended Pneumatic Spray Guns From BuyBox Tools
BuyBox Tools offers pneumatic spray guns with different nozzle configurations for professional painting and workshop applications.
H2000P Pneumatic Air Spray Paint Gun — Supports 0.8mm standard and optional 1.0mm and 1.2mm nozzle sizes, with a 125cc cup.
XLNT H827 Air Spray Paint Gun — Features a 1.4mm nozzle and 600cc paint cup for general painting applications.
DOOTOL DTQ8010 Pneumatic Paint Spray Gun — Features a 1.4mm standard nozzle, optional 1.7mm–2.0mm nozzle sizes, and a 600cc paint cup.
For more options, explore the complete BuyBox Tools Pneumatic Spray Gun Collection.
Frequently Asked Questions
What is the best spray gun nozzle size for painting?
There is no single best nozzle size for every painting job. A 1.3mm–1.4mm nozzle can be a versatile choice for many general-purpose applications, while smaller or larger sizes may be better depending on the coating and required finish.
Is a 1.4mm nozzle good for painting?
Yes. A 1.4mm nozzle is a versatile size commonly used for general painting applications. However, compatibility with the coating and spray gun should always be checked.
What is a 0.8mm spray gun nozzle used for?
A 0.8mm nozzle is generally suited to fine-detail and controlled spraying applications, particularly when working with suitable thinner coatings.
What is a 1.5mm spray gun nozzle used for?
A 1.5mm nozzle allows higher material flow than smaller nozzle sizes and can be useful for medium coatings and applications where greater coverage is required.
Does nozzle size affect spray pattern?
Yes. Nozzle size affects material flow and atomisation, which can influence the resulting spray pattern. However, the final pattern is also affected by the spray gun design, air pressure, fluid adjustment, and other settings.
Can I change the nozzle size on a spray gun?
Only if the spray gun is designed to support different nozzle sizes. Always check the manufacturer's specifications before changing the nozzle.
Final Thoughts
Choosing the right spray gun nozzle size is about finding the right balance between material flow, atomisation, coverage, and finish quality.
Smaller nozzles such as 0.8mm and 1.0mm can provide greater control for suitable fine-spraying applications, while 1.2mm offers a balance between fine control and material delivery. Sizes around 1.3mm to 1.5mm provide greater versatility for many general painting applications.
Before selecting a nozzle, consider the coating, surface, required finish, spray gun specifications, and compressor capacity. Choosing the correct combination can help you achieve more consistent results while reducing paint wastage and unnecessary rework.
