XLNT H827 Pneumatic Spray Paint Gun for Controlled Painting

The XLNT H827 Pneumatic Air Spray Paint Gun is a gravity-feed painting tool designed for applying compatible paints, primers and coatings using compressed air. Its 1.4mm nozzle, 600cc upper paint cup and adjustable spray-gun construction make it suitable for automotive refinishing, furniture painting, wood finishing, metal coating and general workshop applications.

The spray gun requires an external air compressor and operates within a listed working-pressure range of 29-50 PSI. Its listed air consumption is 2-4.5 CFM, so the connected compressor should be capable of maintaining sufficient airflow at the selected pressure.

A spray-pattern width of 24–28cm allows the gun to cover suitable panels and surfaces efficiently when the air pressure, material flow and spray pattern are adjusted correctly.

1.4mm Nozzle for Paint and Coating Applications

The XLNT H827 is fitted with a 1.4mm nozzle.

A 1.4mm nozzle is commonly used for compatible painting and finishing applications where a controlled spray is required. Final suitability depends on the coating viscosity, thinner ratio, air pressure and the surface being painted.

The paint or coating should be prepared according to its manufacturer's instructions. Material that is too thick may spray unevenly or block the nozzle, while overly thin material may run or provide insufficient coverage.

The website should list only the verified 1.4mm nozzle. Do not advertise an additional 1.3mm nozzle unless it is physically included in the final package.

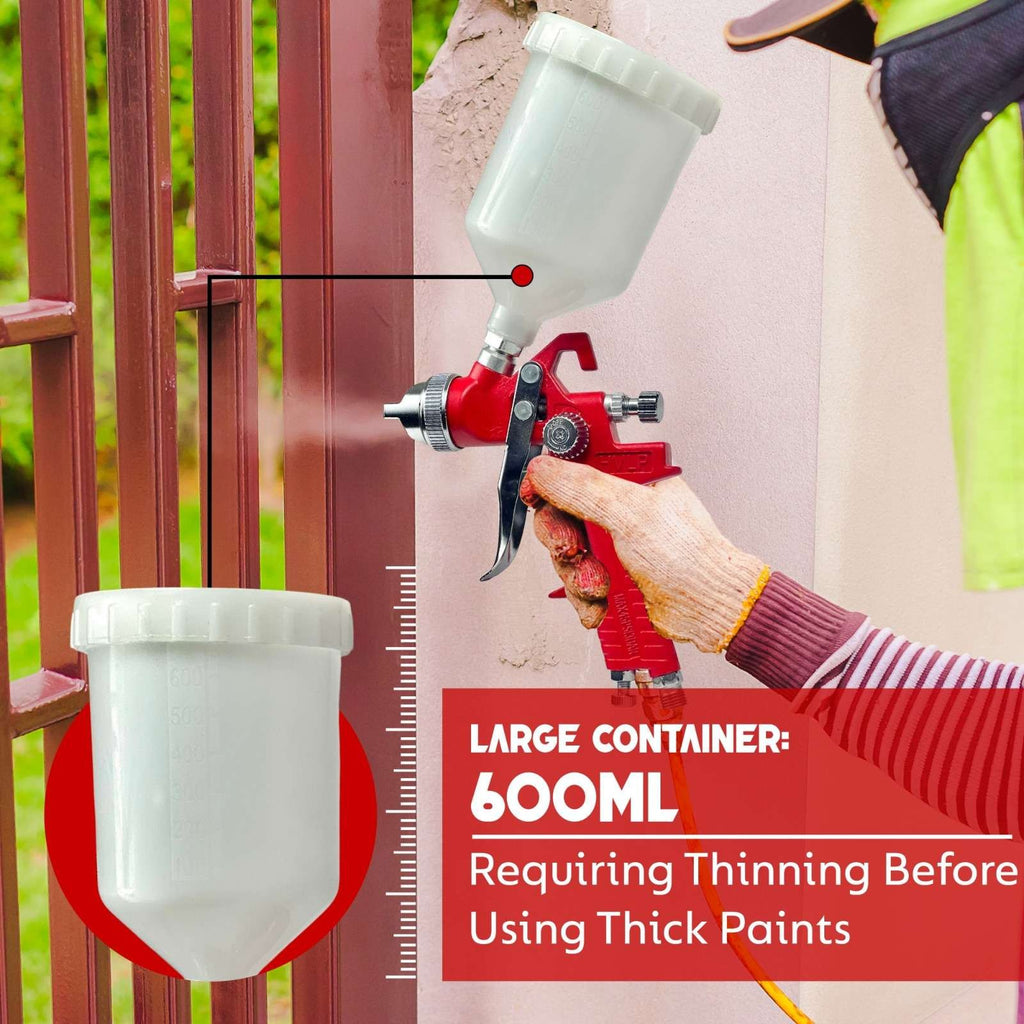

600cc Gravity-Feed Paint Cup

The spray gun includes a 600cc upper paint cup.

The gravity-feed design allows the coating material to flow downward from the cup into the spray gun. This arrangement makes the gun suitable for controlled painting while reducing the need for a separate paint-pressure tank.

The paint cup should be closed securely before use. Avoid overfilling it, especially when painting vertical surfaces or working at different gun angles.

After painting, remove the remaining coating material and clean the cup before the paint dries.

2-4.5 CFM Air Consumption

The spray gun has a listed air-consumption range of 2-4.5 CFM.

The connected compressor should be able to supply sufficient continuous airflow within this range. A compressor with inadequate airflow may cause:

• An uneven spray pattern
• Pressure reduction during painting
• Poor atomisation
• Intermittent paint delivery
• Inconsistent surface finish

Compressor tank size alone does not determine suitability. The compressor's delivered airflow at the required pressure should be checked.

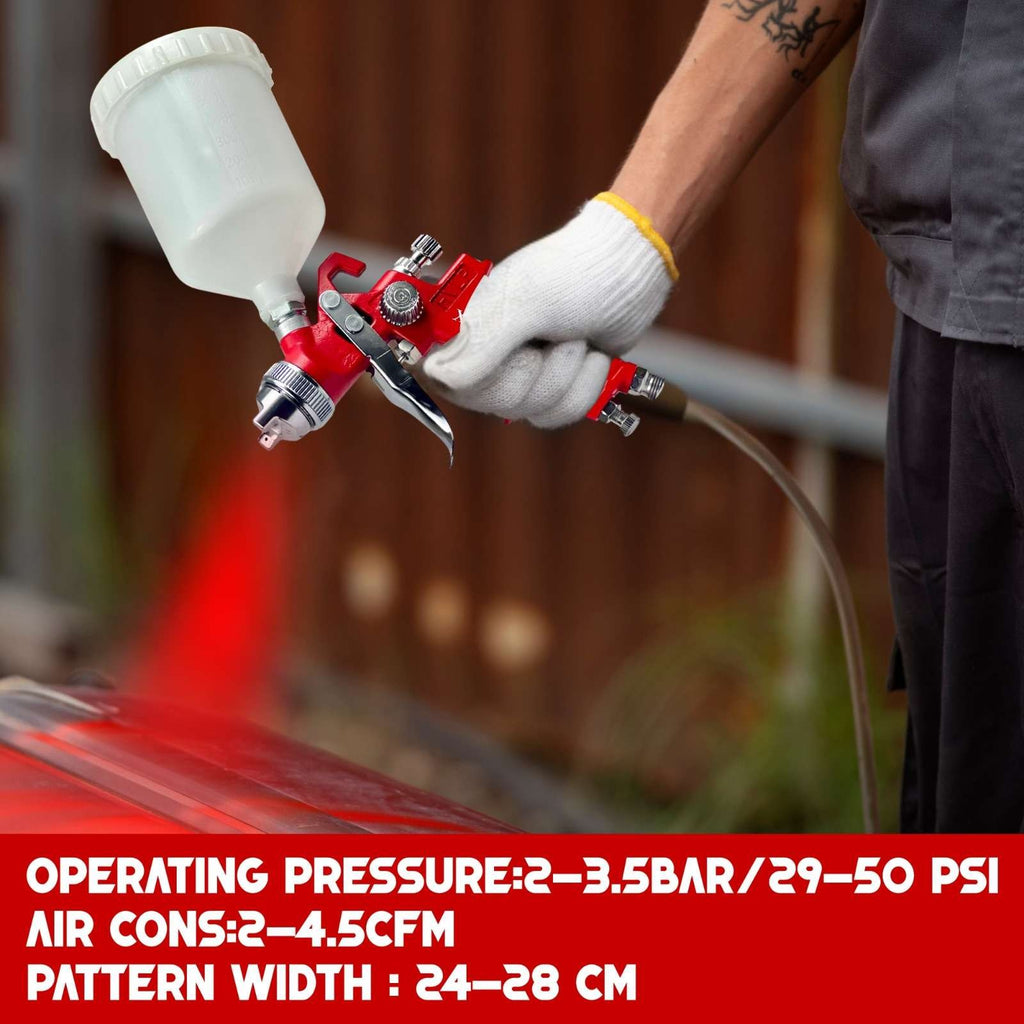

29-50 PSI Working Pressure

The XLNT H827 operates within a listed working-pressure range of 29-50 PSI.

The ideal pressure will depend on:

• Coating viscosity
• Nozzle condition
• Compressor output
• Hose length
• Surface type
• Required finish
• Spray distance
• Material-flow adjustment

Begin at a controlled pressure and test the spray pattern on scrap material before painting the final surface.

Excessive pressure may increase paint mist and material waste. Insufficient pressure may produce uneven atomisation or a narrow, inconsistent pattern.

24- 28 cm Spray-Pattern Width

The spray gun provides a listed spray-pattern width of 24- 28 cm.

A wider pattern can help cover larger areas efficiently, while a controlled pattern is useful around edges, panels and smaller sections.

Actual pattern width may vary depending on air pressure, paint viscosity, gun adjustment and spraying distance.

Maintain a consistent distance and move the gun parallel to the surface. Swinging the gun in an arc can create uneven coating thickness.

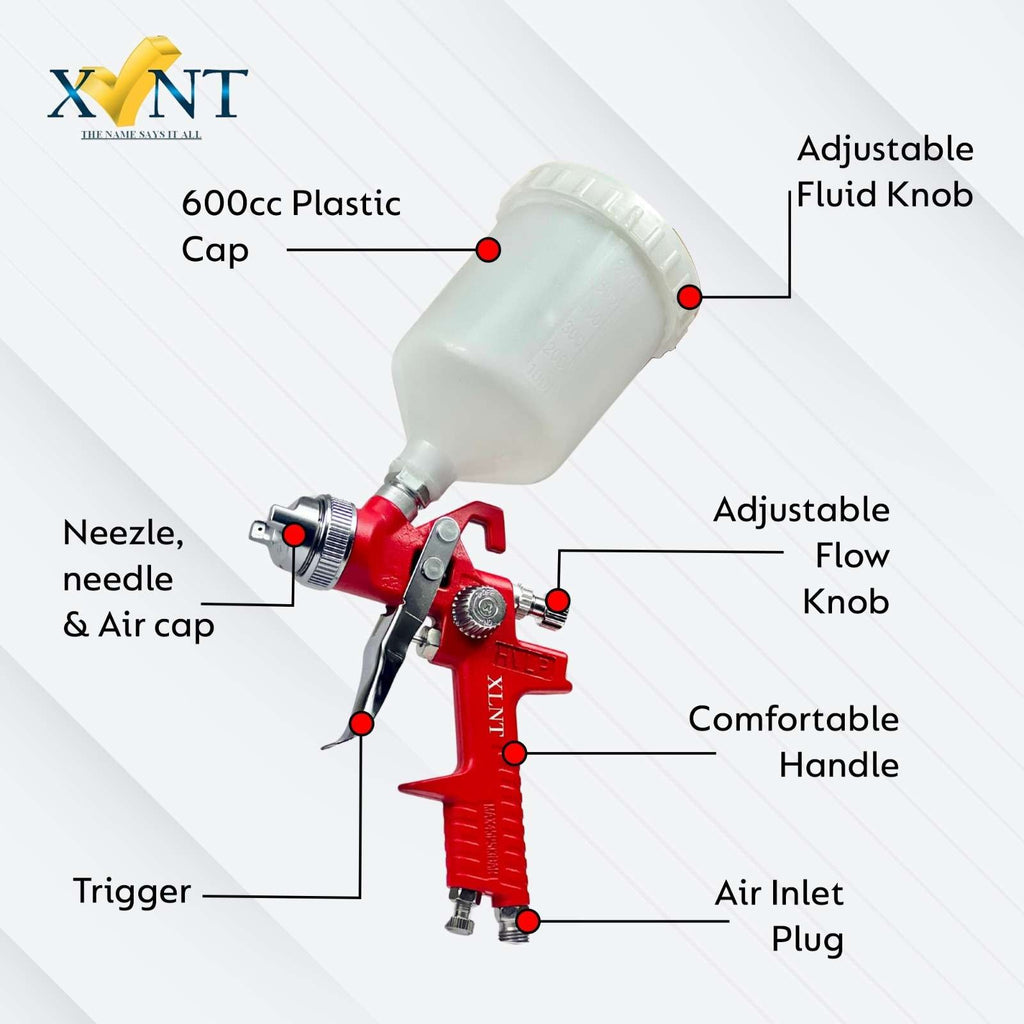

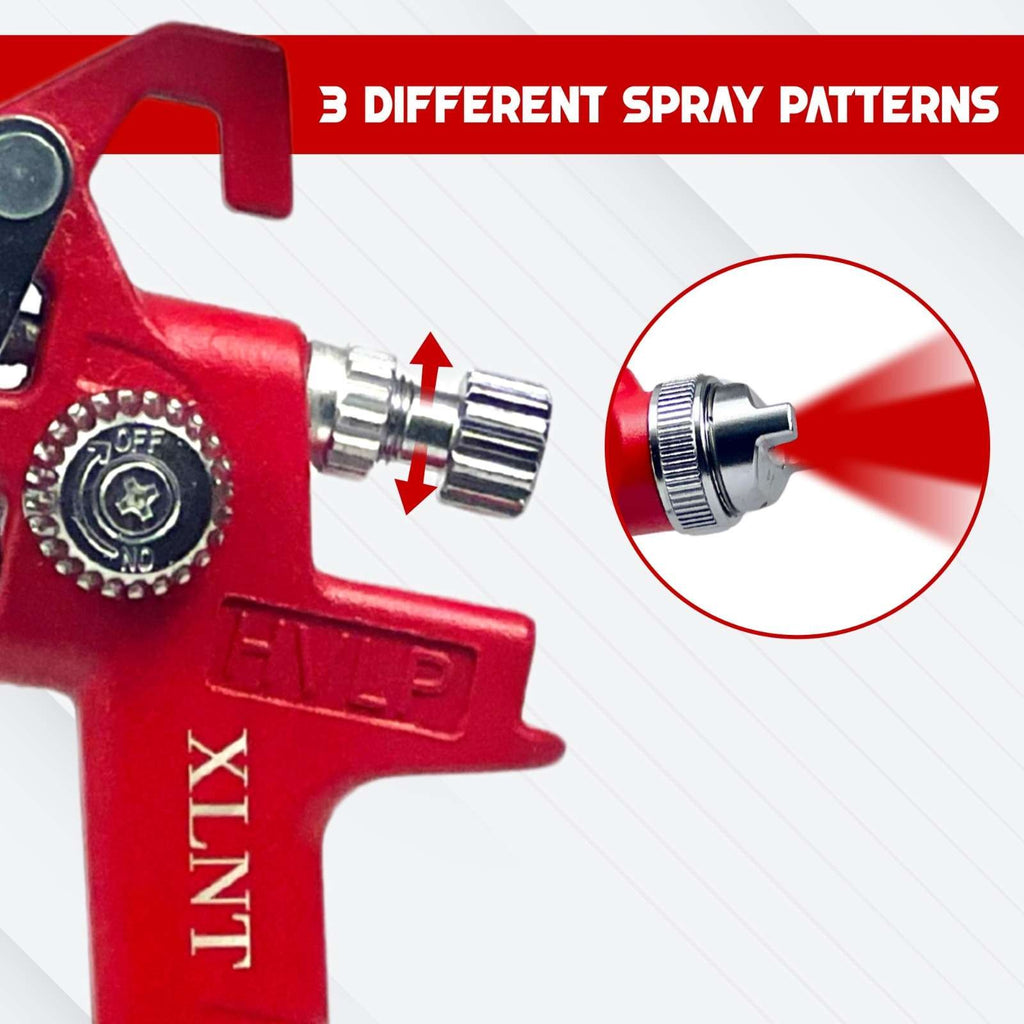

Adjustable Spray-Gun Controls

The gun includes adjustable controls for managing the spray output.

Depending on the gun configuration, these controls may regulate:

• Paint or fluid flow
• Air supply
• Spray-pattern width

Adjust one setting at a time and test the result before painting the final workpiece.

Avoid fully tightening adjustment controls with excessive force, as this may damage the needle, valve or internal components.

Suitable for Automotive Painting

The XLNT H827 can be considered for compatible automotive applications such as:

• Vehicle-panel painting
• Primer application
• Touch-up work
• Repainting suitable components
• Workshop refinishing
• Compatible clear or colour-coat application

Final finish quality depends on surface preparation, coating selection, mixing ratio, air filtration, spraying technique and environmental conditions.

A moisture separator or air filter can help reduce water and contamination entering the spray gun from the compressor line.

Suitable for Furniture and Wood Finishing

The spray gun can also be used for compatible furniture and wood-finishing work.

Potential applications include:

• Furniture repainting
• Cabinet coating
• Wood finishing
• Decorative panel painting
• Compatible lacquer or coating application
• Workshop restoration

Always confirm that the coating is suitable for pneumatic spray application and compatible with the gun’s 1.4mm nozzle.

Suitable for Metal-Coating Work

The H827 can support compatible metal-painting applications when the surface is cleaned and properly prepared.

Remove rust, loose coating, grease, oil and dust before painting. Apply a suitable primer where required and follow the coating manufacturer’s drying and recoating instructions.

The spray gun should not be used around open flames, sparks or unprotected electrical equipment when spraying flammable materials.

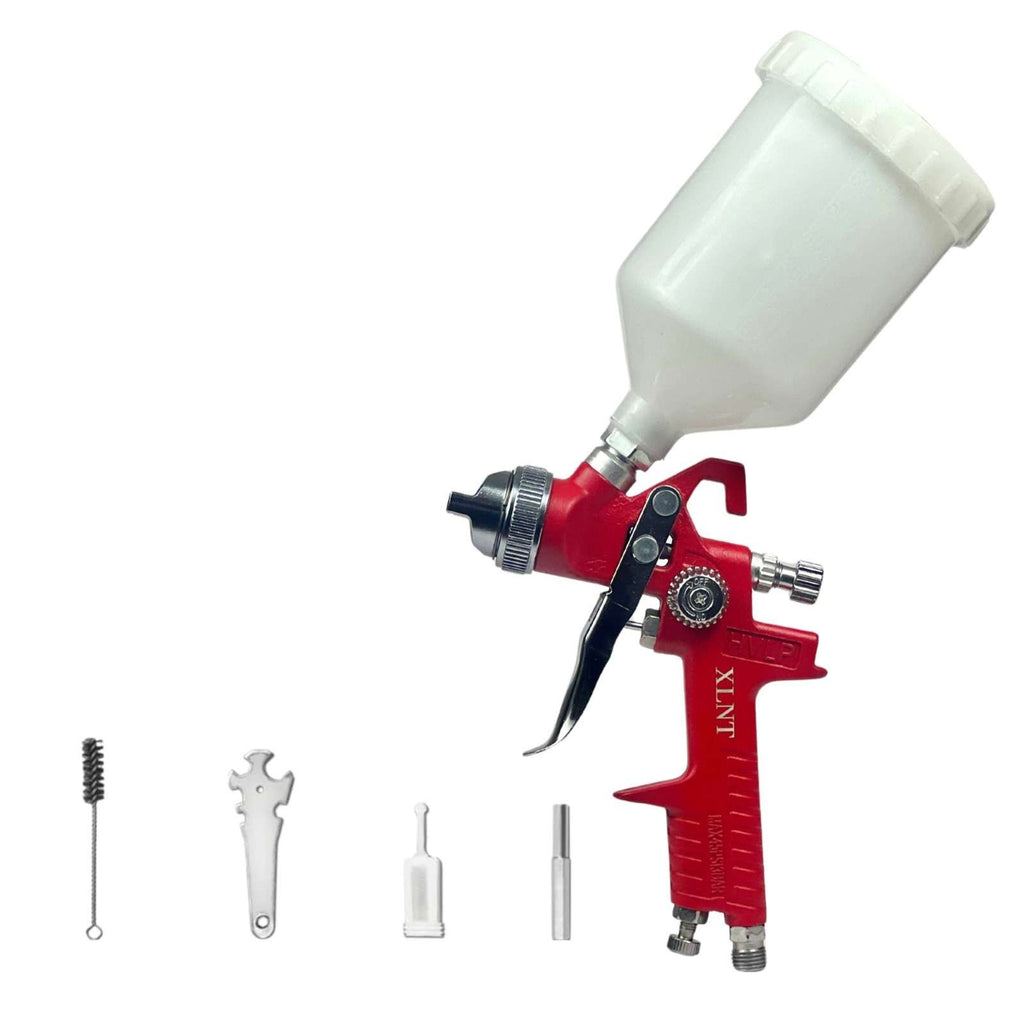

Cleaning Brush and Wrench

A cleaning brush and multi-purpose wrench are supplied with the spray gun.

The brush helps clean suitable nozzle and fluid-path areas after use. The wrench assists with compatible maintenance and nozzle-component removal.

Use the correct side of the wrench and avoid overtightening delicate spray-gun components.

Clean the spray gun immediately after painting. Dried coating inside the nozzle, needle or fluid passage can affect spray quality and may damage internal parts.

Compressor and Air-Hose Requirements

This is a pneumatic tool and requires:

• A compatible air compressor
• Suitable air hose
• Correct fittings or couplers
• Regulated air pressure
• Clean and reasonably dry compressed air

The compressor, hose and connector fittings are not shown as part of the spray-gun package and should be arranged separately unless specifically included in the selected offer.

Safe Painting Guidance

Use an approved respirator suitable for the coating being sprayed, along with eye protection, gloves and protective clothing.

Painting should be carried out in a well-ventilated spray area away from flames, sparks and ignition sources.

Follow the paint or coating manufacturer’s safety instructions. Some products require specialised respiratory protection and controlled spray-booth conditions.

Key Features

1.4mm nozzle size

600cc gravity-feed paint cup

2-4.5 CFM air consumption

29-50 PSI working pressure

24-28cm spray-pattern width

Pneumatic compressed-air operation

Gravity-feed spray-gun design

Adjustable fluid and spray controls

Cleaning brush included

Multi-purpose wrench included

Suitable for compatible automotive painting

Suitable for furniture and wood finishing

Suitable for metal-painting work

Designed for controlled paint application

Compatible air compressor required
