YANZHI 30L Oil-Free Air Compressor for Garage and Workshop Use

The YANZHI YZ1390-30 30L Oil-Free Air Compressor is a portable compressed-air machine designed for garage, workshop, maintenance and compatible pneumatic applications. It combines a 30-litre horizontal air tank with a visible dual-head compressor assembly, helping produce and store compressed air for regular jobs.

The compressor operates on a rated voltage of 220V and delivers a listed maximum pressure of 8 bar. It also provides a stated air output of 167 litres per minute with a listed operating speed of 2850 RPM.

The supplier image contains conflicting power information. The main specification panel states an input power of 1390W, while another section states 550W. The correct power rating should therefore be verified from the physical product label before being added to the final website content.

30-Litre Air Tank for Compressed-Air Storage

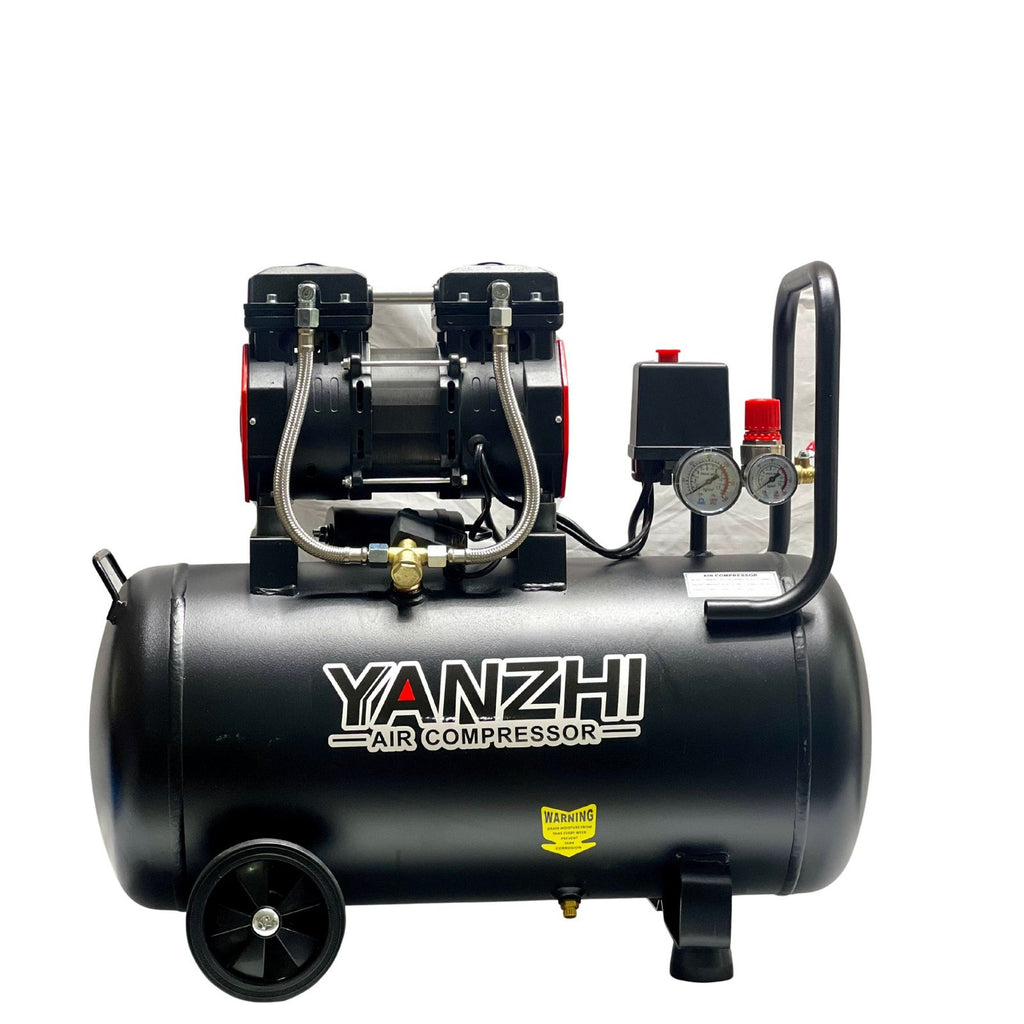

The YANZHI YZ1390-30 features a horizontal 30-litre tank for storing compressed air produced by the compressor assembly. The stored air can support jobs that require short or repeated bursts of compressed air.

Actual operating performance will depend on the connected tool, required working pressure, airflow consumption, hose condition and tank-pressure level.

Before connecting pneumatic equipment, compare its required airflow with the compressor’s listed output of 167 L/min. Tools with higher air requirements may not perform properly or may cause the compressor to restart frequently.

Dual-Head Oil-Free Compressor Assembly

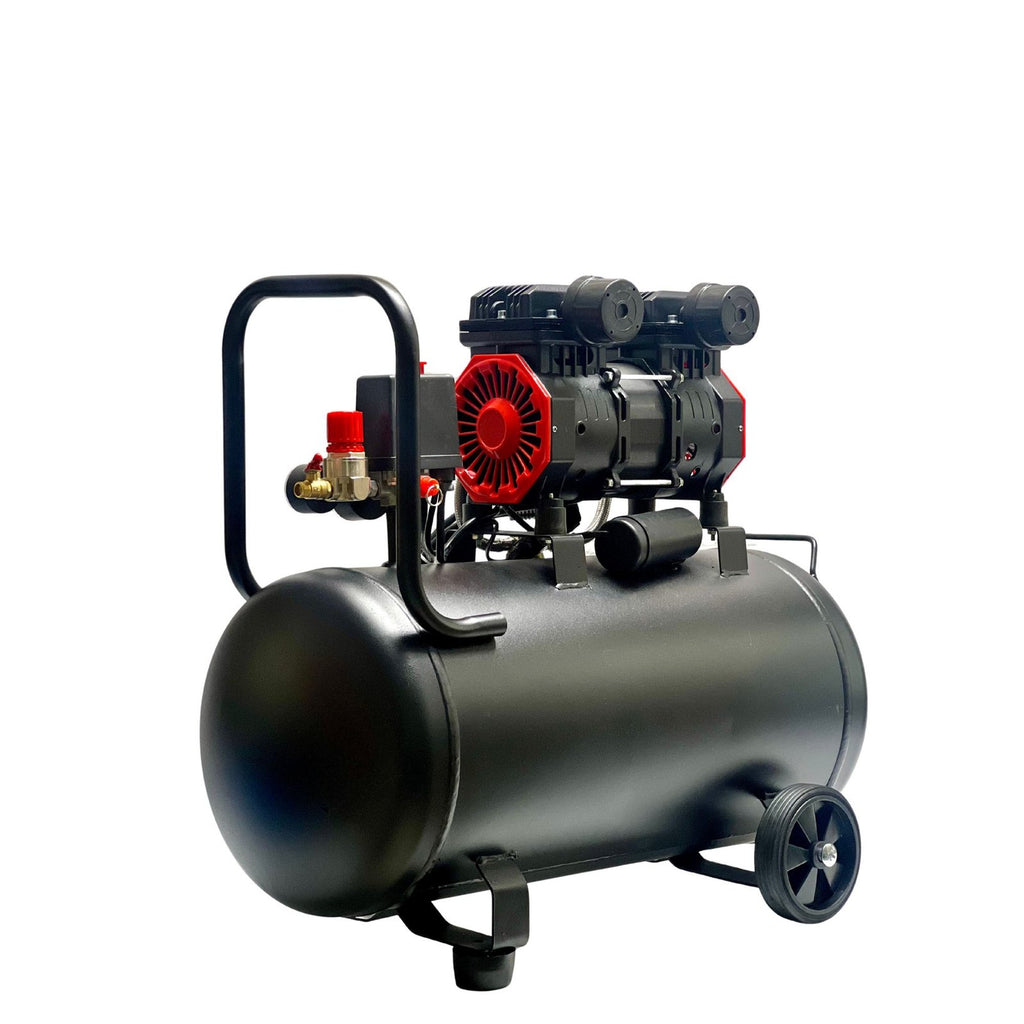

The supplier image shows two compressor heads mounted above the air tank. This should be described as a dual-head compressor assembly, not a double-hose compressor.

The oil-free compressor design reduces the need for pump-oil maintenance. The machine should still be kept clean, properly ventilated and inspected regularly for loose fittings, air leakage and visible damage.

The supplier image does not provide a noise rating, continuous-duty rating or thermal-protection specification. Avoid describing the machine as silent, low-noise or suitable for uninterrupted continuous operation without official confirmation.

8 Bar Pressure and 167 L/min Air Output

The compressor has a listed maximum pressure of 8 bar and an air output of 167 litres per minute.

These specifications make it suitable for compatible compressed-air applications where the required pressure and airflow remain within the machine’s capacity. A suitable pressure regulator and compatible fittings may be required depending on the connected tool.

Users should never exceed the recommended pressure of the connected hose, accessory or pneumatic equipment.

Portable Design with Wheels and Handle

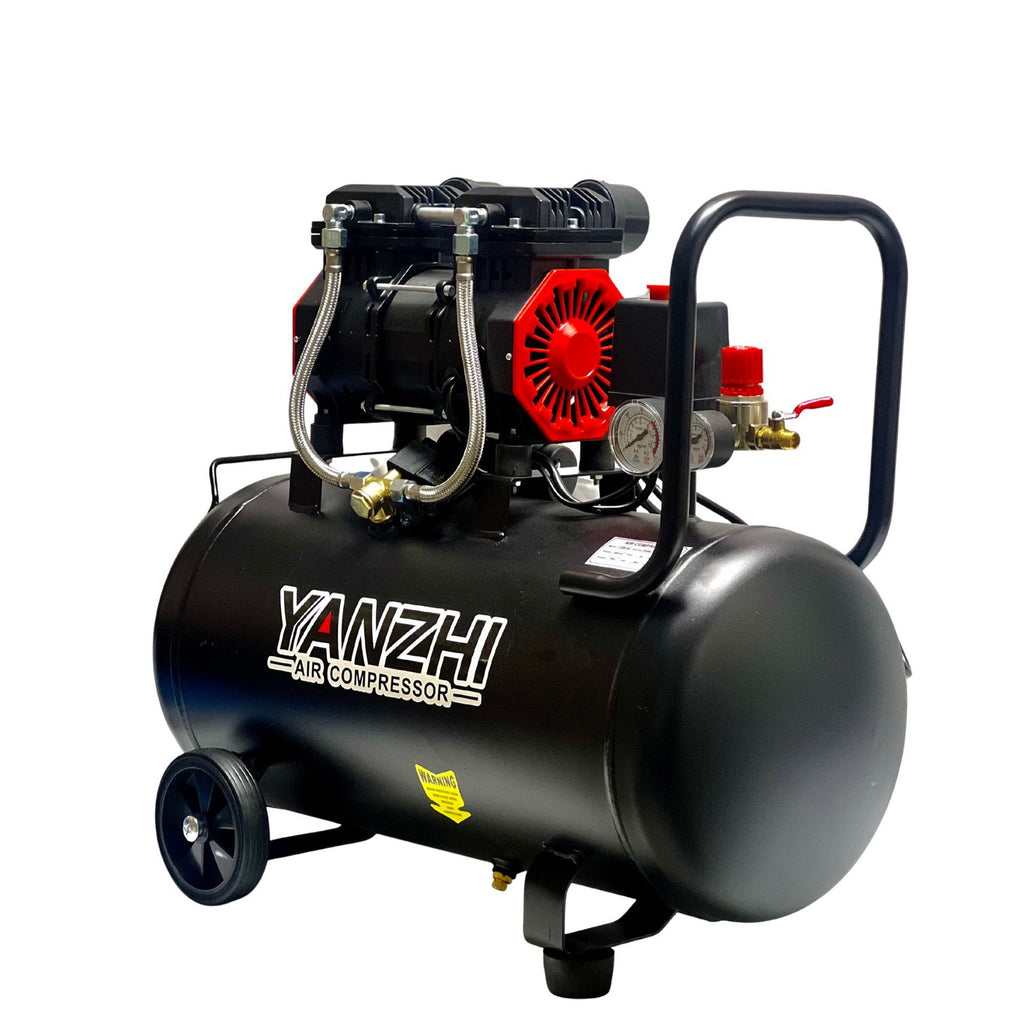

The YANZHI YZ1390-30 features transport wheels and an integrated upright handle. This design makes it easier to move and position the compressor around a garage, workshop or maintenance area.

Support feet beneath the tank help stabilise the machine during operation. The compressor should always be placed on a dry, firm and level surface with sufficient ventilation around the compressor assembly.

Suitable Applications

Tyre inflation

Air blowing and dust removal

Light spray-painting applications

Garage maintenance

Workshop tasks

Inflating suitable equipment

Using compatible air blow guns

Operating compatible pneumatic spray guns

Operating compatible low-to-moderate airflow pneumatic tools

General compressed-air applications

Always compare the connected tool’s pressure and airflow requirements with the compressor specifications before use.

Key Features

30-litre horizontal air tank

Oil-free compressor system

Dual-head compressor assembly

8 bar listed maximum pressure

167 L/min listed air output

2850 RPM listed speed

220V rated voltage

Pressure gauge visible

Pressure-control assembly visible

Integrated movement handle

Transport wheels

Stable floor supports

Portable horizontal-tank construction

Corded electric operation

Suitable for garage and workshop applications
