XLNT MMA300A Inverter Welding Machine for Fabrication and Repair

The XLNT ANA MMA300A Inverter Welding Machine is a portable MMA arc welder designed for fabrication, repair, workshop and maintenance applications. Its compact iron-case construction, integrated carrying handle and supplied welding accessories make it a practical option for users who need a complete electrode-welding setup.

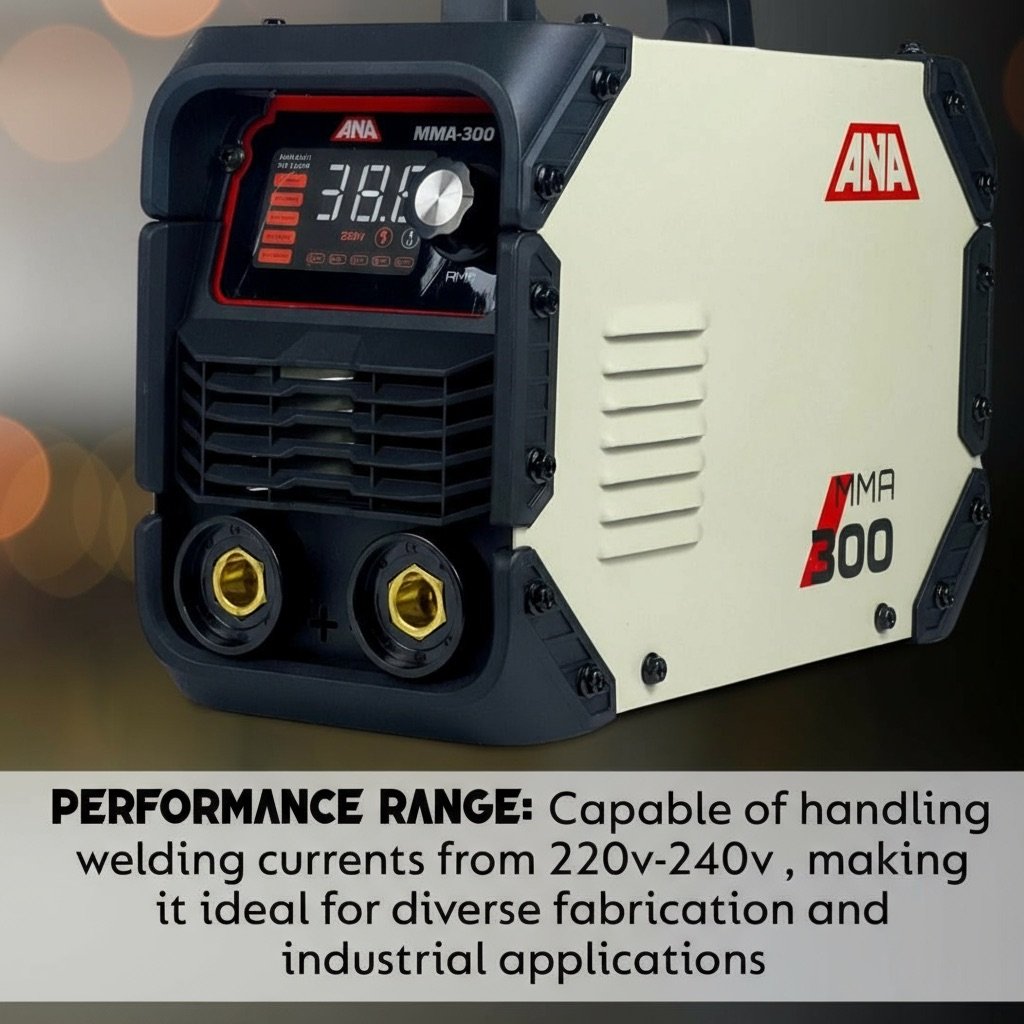

The machine operates on a rated voltage range of 220V to 240V with a listed frequency of 50/60Hz. This electrical specification makes it suitable for compatible single-phase power supplies within the stated voltage range.

The supplier image identifies the product as MMA300A. This should be treated as the machine’s product or output classification. However, the exact adjustable welding-current range and tested real output are not provided in the supplier information and should not be invented.

60% Duty Cycle

The XLNT MMA300A has a supplier-listed 60% duty cycle.

Duty cycle indicates that the machine is not intended to weld without interruption for the entire operating cycle at the relevant rated conditions. Welding time and required cooling time can vary depending on the selected current, ambient temperature, electrode size and official testing standard.

Avoid describing the machine as suitable for uninterrupted continuous operation. Follow the operating guidance in the supplied manual and allow the machine to cool when required.

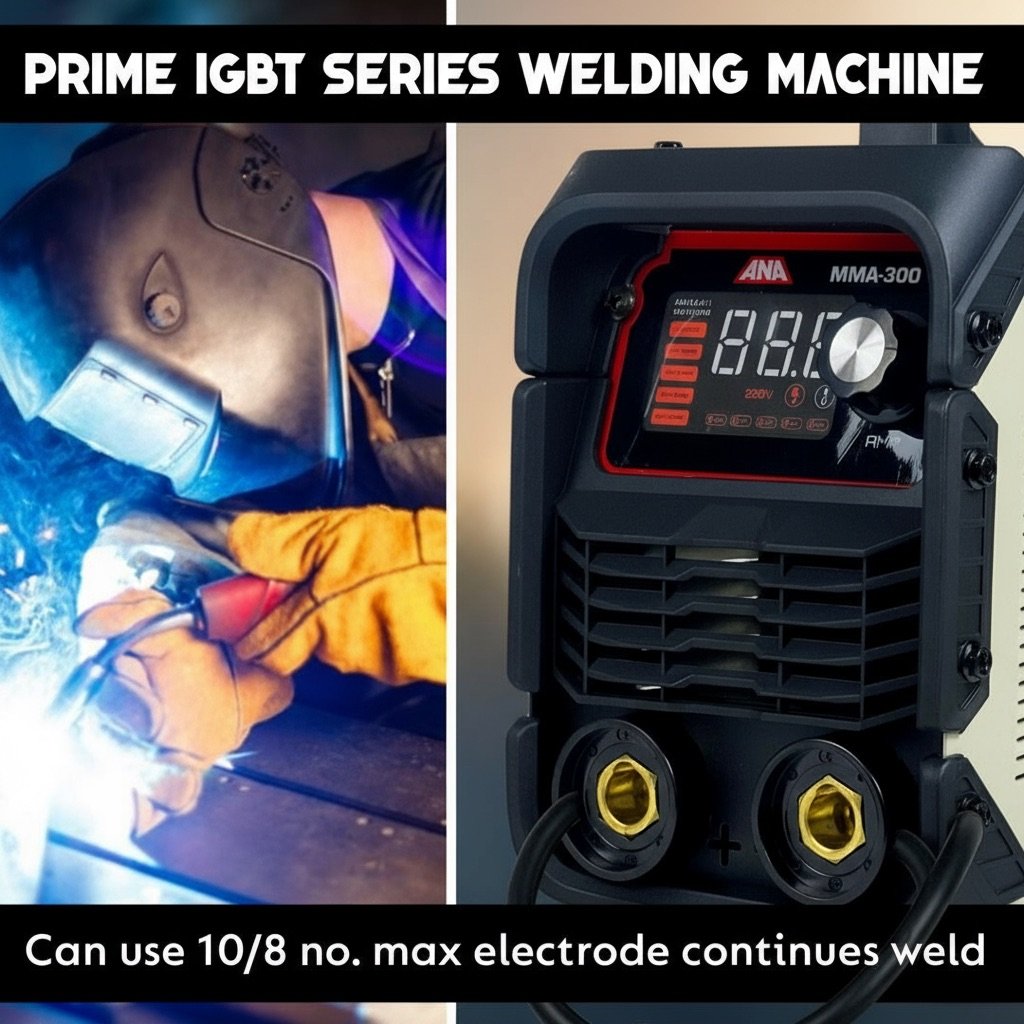

1 PCB and 1 IGBT Electronic Configuration

The supplier image lists the electronic configuration as:

1 PCB + 1 IGBT

IGBT-based inverter construction is commonly used to create a compact welding machine body and electronically control welding output. The exact IGBT rating, PCB design and protective functions are not provided.

Do not add unsupported claims such as multiple IGBT modules, advanced digital control, anti-stick, hot start, arc force adjustment or overheat protection unless these features are confirmed separately.

Supports 1.6mm to 2.5mm Electrodes

The supplier information lists an electrode diameter range of:

1.6mm to 2.5mm

The correct electrode size should be selected according to the material, joint type, thickness and required welding current.

Users should ensure that the selected electrode falls within the confirmed supported range and that the welding current is set appropriately. Actual electrode performance can vary according to electrode type and operating conditions.

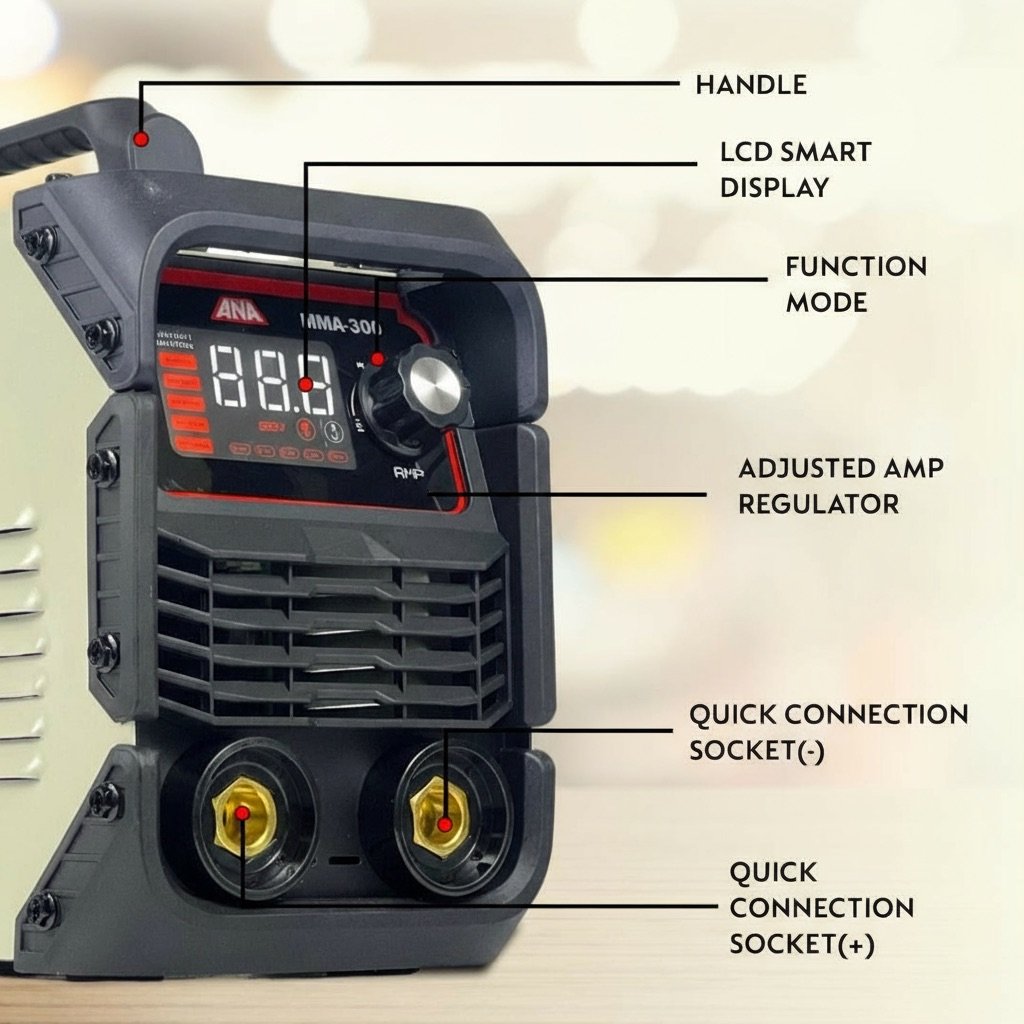

35–50 Welding Connectors

The welding machine has supplier-listed 35–50 connectors.

These front connectors are used for attaching the electrode-holder and earth-clamp cables. Before purchasing replacement cables or connectors, users should confirm compatibility with the machine’s connector size and polarity arrangement.

The connectors and cable terminals should be kept clean and firmly attached to reduce heat buildup and unstable welding contact.

Electrode Holder and Earth Clamp Cables

The supplier image lists:

Electrode Holder Cable: 1.5 metres, marked 12MM
Earth Clamp Cable: 1.5 metres, marked 12MM

The electrode holder grips the welding electrode during operation. The earth clamp connects the welding circuit to the workpiece or suitable metal surface.

Both connections should be fitted securely before welding begins. Loose or dirty connections can affect arc stability and may generate unnecessary heat.

The supplier material does not clarify whether “12MM” refers to cable cross-section, cable diameter or another measurement. Keep the wording exactly as supplier-marked until clarified.

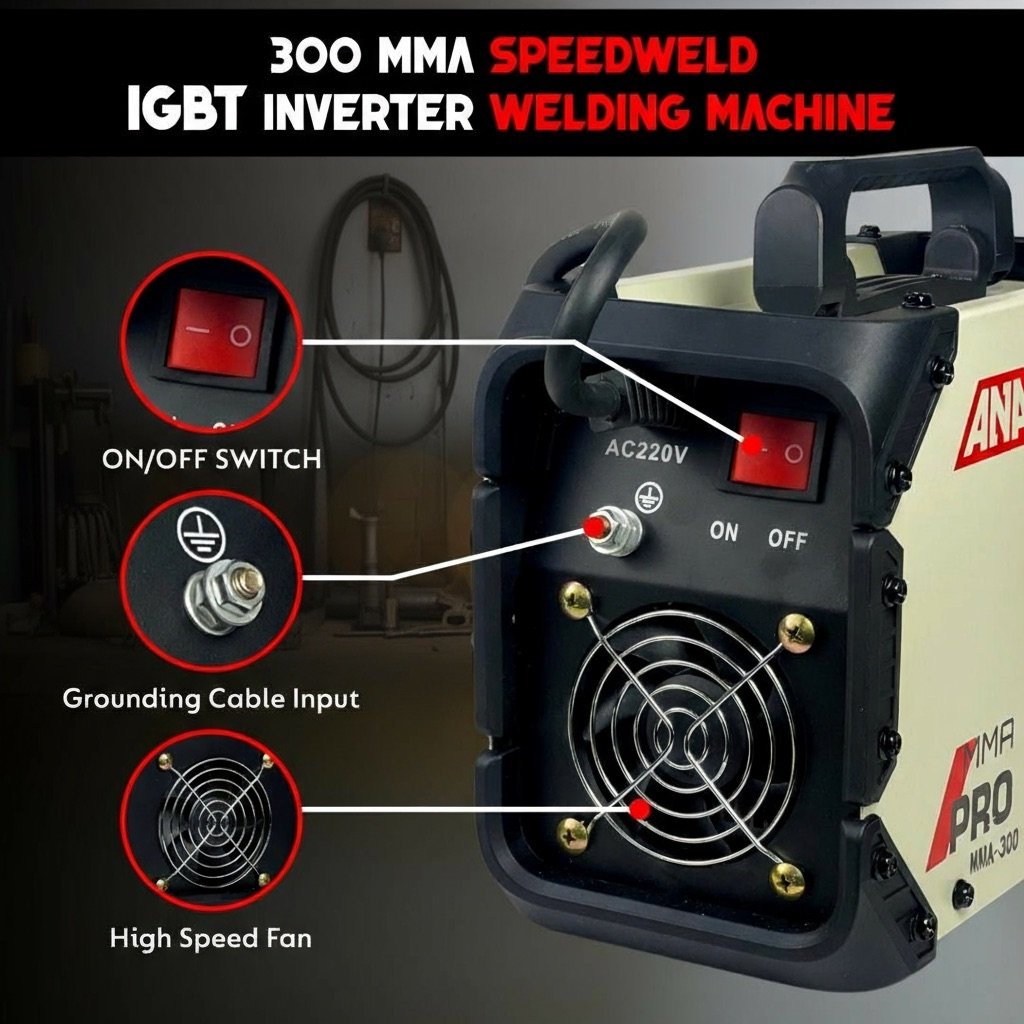

1.8-Metre Power Cable with Euro Plug

The XLNT MMA300A includes a supplier-listed 1.8-metre power cable with Euro plug.

The welding machine should be connected only to an electrical supply suitable for its 220–240V input. The socket, wiring, plug and circuit protection must be capable of supporting the machine’s electrical load.

Avoid using undersized extension cables. An unsuitable cable can cause voltage drop, overheating and reduced welding performance.

Iron Case with Protective Plastic Sections

The supplier describes the body as:

Black plastic and iron case

The machine shown has an iron-body enclosure with protective plastic sections around the front, corners and controls. This construction also includes an integrated top handle for carrying and repositioning the unit.

The welding machine should be placed on a dry, stable and well-ventilated surface. Keep the ventilation openings clear of metal dust, grinding particles and other obstructions.

Compact Machine Dimensions

The supplier-listed dimensions are:

35.5 √ó 16.5 √ó 28cm

Its compact dimensions and integrated handle make the XLNT MMA300A easier to move between workshop, fabrication and repair locations.

Allow sufficient clearance around the ventilation openings during operation. Do not cover the machine or place it against a wall where airflow may be restricted.

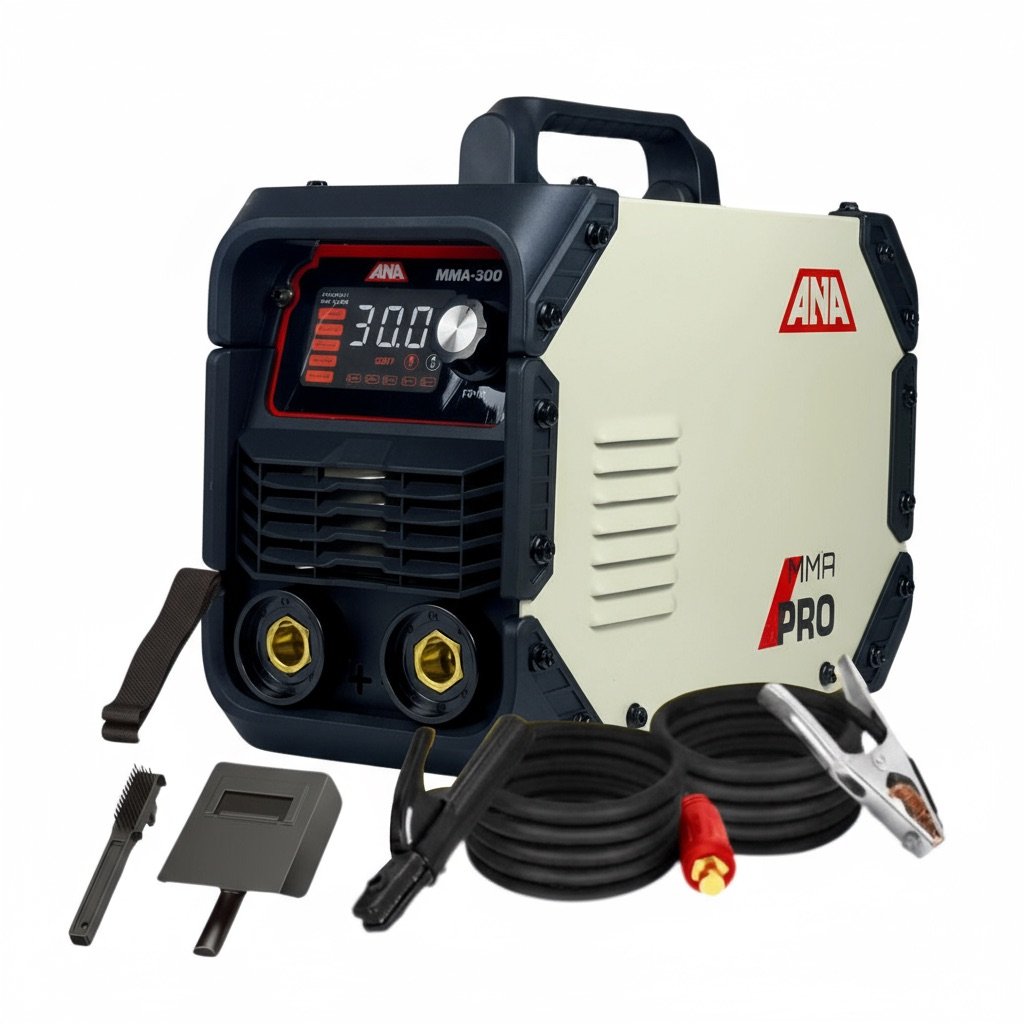

Complete Welding Accessory Set

The supplier image shows the main accessories required for basic MMA welding:

Electrode holder with cable

Earth clamp with cable

Handheld welding mask

Cleaning brush

Power cable

User manual

The mask helps protect the user’s eyes and face from welding arc light and sparks. The brush can be used for cleaning suitable weld areas and removing loose residue after the welded metal has cooled.

Always use suitable personal protective equipment even when a basic handheld mask is included.

Suitable Applications

The XLNT ANA MMA300A can be considered for:

General MMA electrode welding

Metal fabrication work

Workshop repairs

Maintenance welding

Gate and grill repair

On-site repair applications

Joining compatible metal sections

Equipment maintenance

Home workshop projects

General arc-welding work

Actual suitability depends on the electrode selected, material type, material thickness and confirmed welding-current range.

Welding Safety Guidance

Use a proper welding helmet or approved welding mask, welding gloves, protective clothing and suitable footwear.

Welding should only be carried out in a properly ventilated area away from fuel, gas cylinders, paint, paper, wood dust and other flammable materials.

Inspect the power cable, electrode holder, earth clamp, welding cables and connectors before every use.

Never touch exposed conductive parts while the machine is connected to power. Disconnect the machine before inspecting or changing connections.

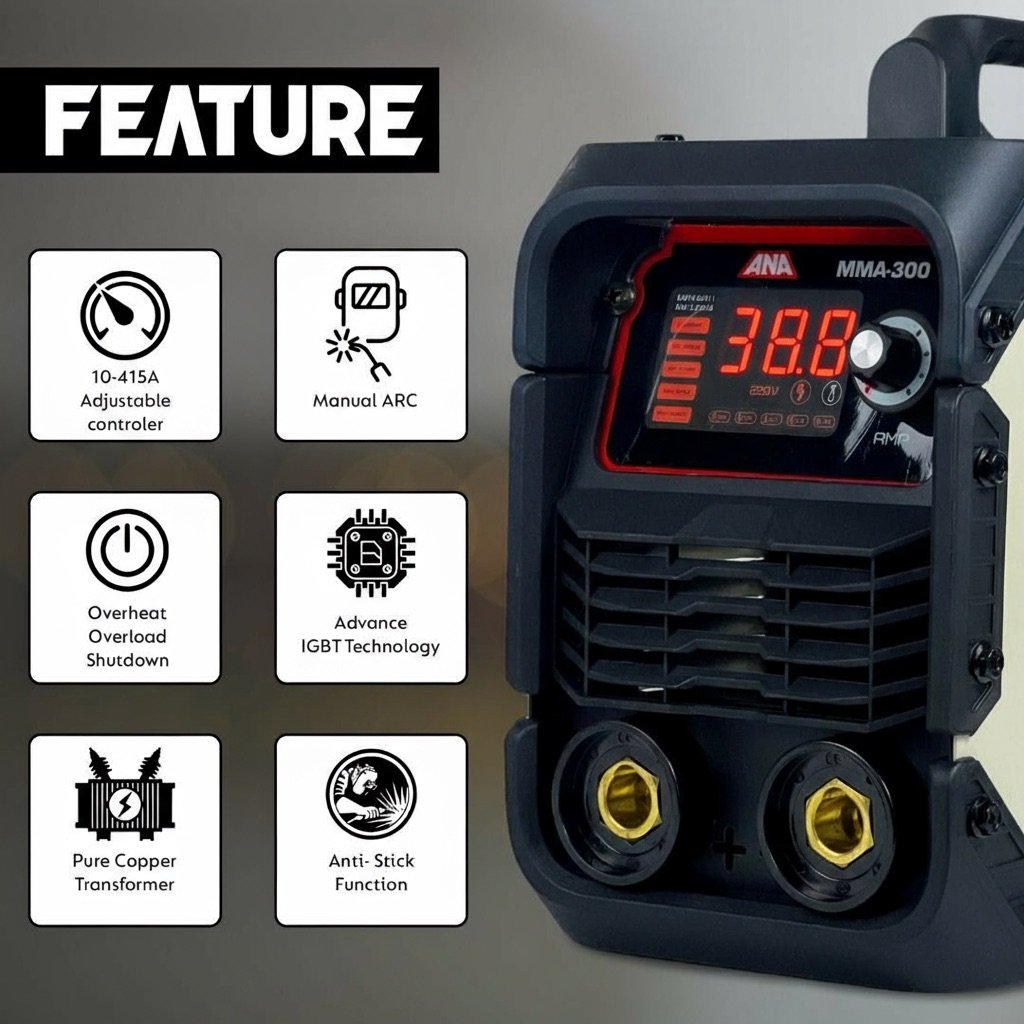

Key Features

MMA300A product classification

220–240V rated voltage

50/60Hz rated frequency

60% duty cycle

1 PCB + 1 IGBT supplier-listed configuration

1.6–2.5mm supported electrode diameter

35–50 connector size

1.5m electrode-holder cable

1.5m earth-clamp cable

1.8m power cable with Euro plug

Iron case with protective plastic sections

Integrated carrying handle

Compact 35.5 √ó 16.5 √ó 28cm dimensions

Welding mask included

Cleaning brush included

User manual included

Suitable for fabrication, repair and workshop welding
