XLNT 200A MMA Welding Machine for Fabrication and Repair

The XLNT JARIA MMA200J 200A MMA Arc Welding Machine is a compact electrode-welding machine designed for fabrication, repair, maintenance and workshop applications. Its portable body, integrated carrying handle, and supplied welding accessories make it a practical choice for users who need an MMA welding setup that can be moved between different work locations.

The supplier image lists a welding current of 200 amps. The machine operates on a rated electrical supply of 220V at 50Hz and supports welding electrodes ranging from 1.6mm to 2.5mm.

The welding machine also uses 35-50 connectors for attaching compatible electrode-holder and earth-clamp cables. These specifications make it suitable for compatible arc-welding applications where the electrode size, material thickness and working conditions remain within the machine's confirmed capacity.

Supplier-Listed 200A Welding Current

The supplier image lists the machine current as 200A.

This should be presented as the supplier-listed current or product classification. The supplied information does not confirm the minimum current setting, the full adjustable-current range or independently tested continuous output.

Avoid describing the machine as providing a guaranteed continuous real output of 200A unless an official technical datasheet or test certificate confirms it.

The correct welding current should be selected according to:

Electrode diameter
Electrode type
Material thickness
Joint design
Welding position
Surface preparation
Operator technique

Excessive current may cause heavy spatter, overheating or burn-through. Insufficient current may cause electrode sticking, weak fusion or unstable arc performance.

Supports 1.6mm to 2.5mm Electrodes

The XLNT MMA200J supports supplier-listed electrode diameters from 1.6mm to 2.5mm.

Smaller electrodes can be useful for lighter repair work and thinner compatible materials. A 2.5mm electrode may be considered for suitable general fabrication and repair applications when the correct welding current is selected.

Actual electrode compatibility can vary depending on the electrode classification, material and working conditions.

Electrodes larger than 2.5mm should not be advertised as supported unless the supplier confirms them separately.

40% Duty Cycle

The supplier image lists a 40% duty cycle.

Duty cycle indicates the permitted welding time within a defined operating period under specified test conditions. It does not mean that the machine can weld without interruption throughout the full cycle.

Actual welding and cooling requirements may vary according to:

Selected welding current
Electrode diameter
Ambient temperature
Input voltage
Ventilation around the machine
Length of the welding session

Do not describe the XLNT MMA200J as suitable for uninterrupted continuous welding. Allow the machine to cool when required and keep all ventilation openings unobstructed.

220V 50Hz Electrical Operation

The machine operates on a rated voltage of 220V and a frequency of 50Hz.

Before connecting the welder, ensure the electrical socket, plug, wiring and circuit protection are suitable for welding-equipment use.

Avoid operating the machine through an undersized extension cable. An unsuitable cable can cause voltage drop, cable heating and unstable welding performance.

The supplier image does not confirm the required input current, input wattage, recommended circuit-breaker size or plug rating. These details should be checked from the machine label or official manual.

35–50 Welding Connectors

The supplier image confirms 35–50 welding connectors.

These front connectors are used for attaching the electrode-holder and earth-clamp leads. Any replacement cable plugs should match the machine’s connector specification and polarity arrangement.

The connectors should be inserted fully and tightened securely. Loose or dirty connections may create resistance, unstable arc performance and unwanted heat buildup.

Electrode Holder and Earth Clamp

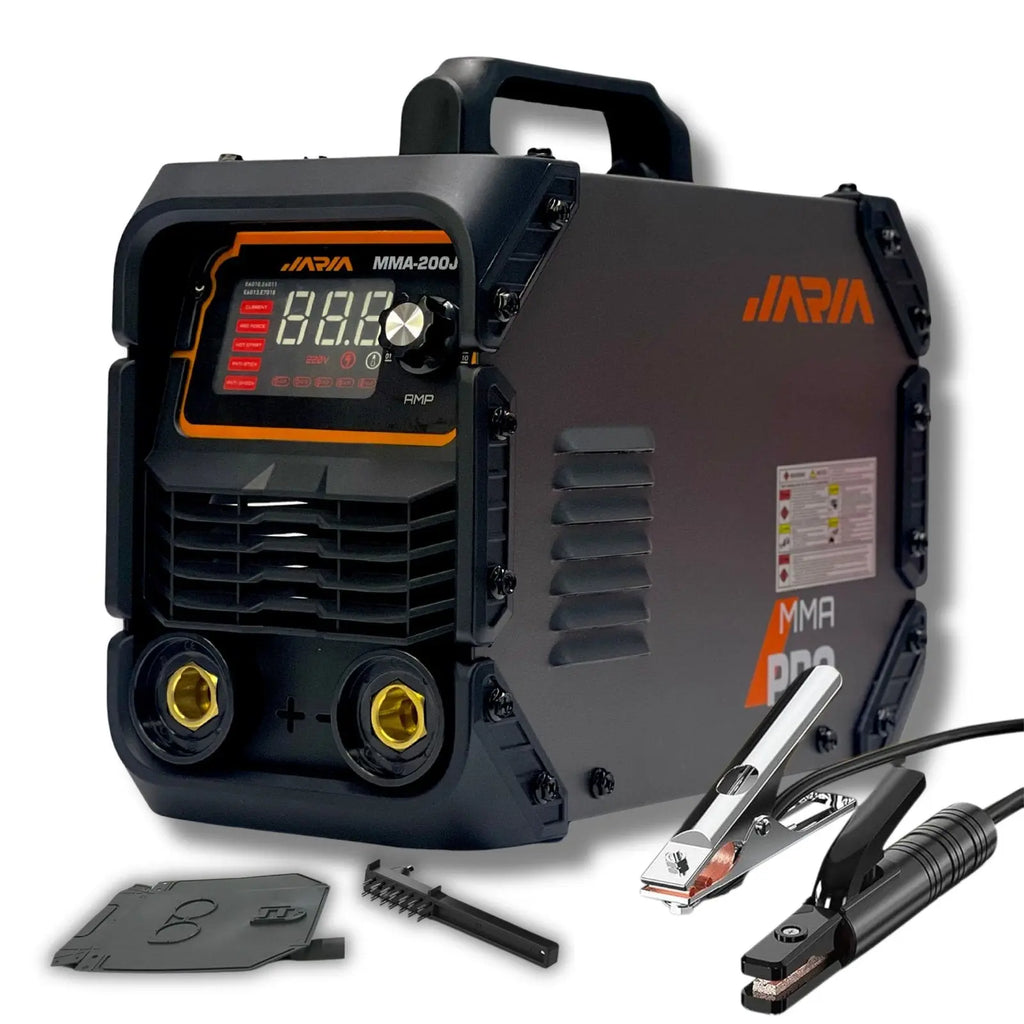

An electrode holder and earth clamp are shown with the XLNT MMA200J.

The electrode holder grips the welding electrode and carries welding current during operation. The earth clamp completes the welding circuit by connecting to the workpiece or a suitable clean metal surface.

For reliable welding contact:

Attach the earth clamp to clean exposed metal
Remove heavy paint, rust and dirt from the contact point
Keep cable terminals securely connected
Replace cables with damaged insulation
Avoid loose or overheated connectors

Poor earth contact can cause unstable arc performance, excessive heat and difficulty starting the weld.

Supplier-Listed 1.5-Metre Wire

The supplier image includes the wording:

Power: 1.5M Wire

This appears to describe a 1.5-metre cable or wire, but the exact cable type is not identified.

Until confirmed, publish it as:

Supplier-Listed Cable Length: 1.5 metres — exact cable type requires confirmation

Do not specifically label it as a power cable, holder cable or earth cable without verification.

Welding Mask and Cleaning Brush

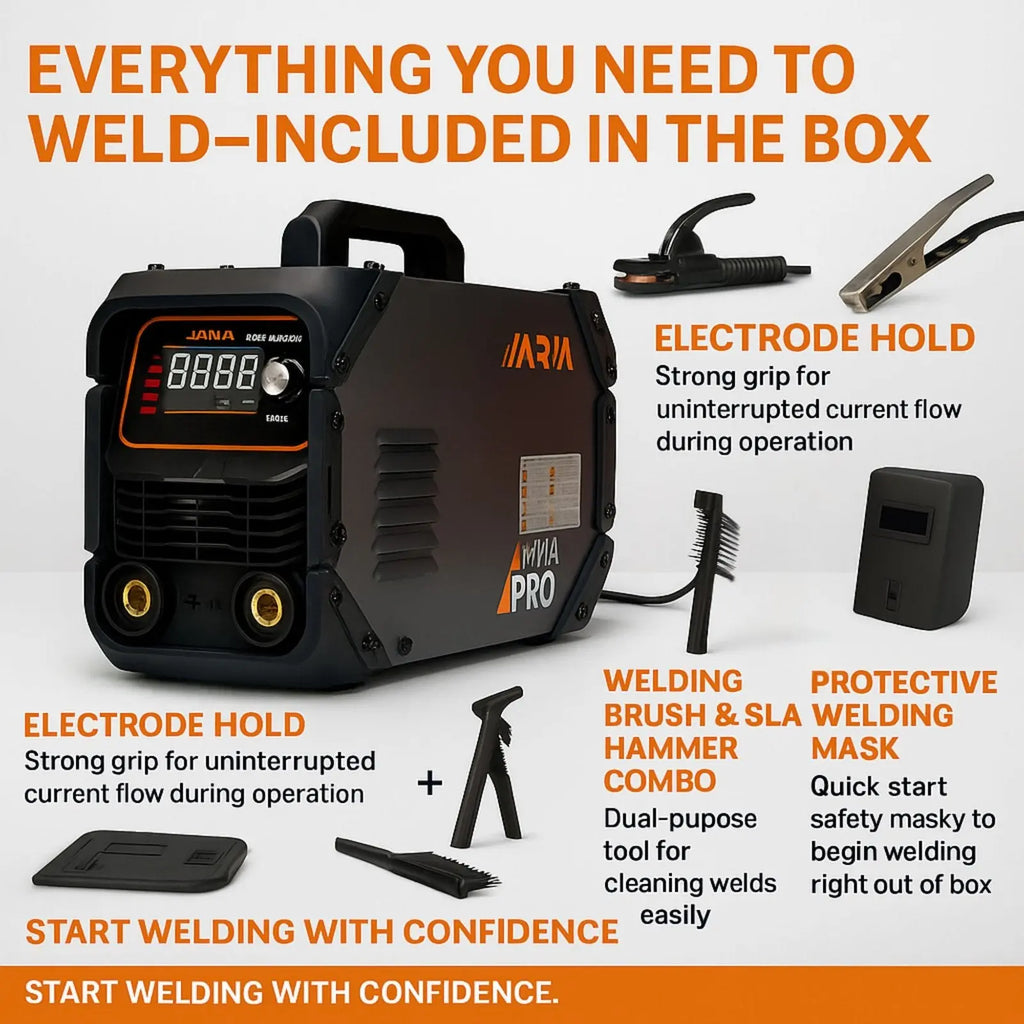

The supplier image shows a handheld welding mask and cleaning brush with the machine.

The welding mask helps shield the user’s eyes and face from arc light and sparks. For regular welding, an approved welding helmet may offer better protection and allow the operator to keep both hands available.

The brush can be used for suitable weld-area cleaning and removing loose slag or residue after the welded metal has cooled.

The brush should not be used on hot metal immediately after welding.

Portable Welding Machine with Carrying Handle

The XLNT MMA200J has a compact body with an integrated top carrying handle. This makes it easier to move between workshop, fabrication, maintenance and repair locations.

Place the welding machine on a dry, firm and stable surface during operation. Keep the ventilation areas clear of grinding dust, metallic particles, cloth and other obstructions.

Do not position the machine directly on wet flooring or in areas where water can enter the casing.

Suitable Welding Applications

The XLNT JARIA MMA200J can be considered for:

General MMA electrode welding

Metal fabrication work

Workshop repairs

Gate and grill repair

Maintenance welding

On-site repair work

Joining compatible metal sections

Equipment repair

Home workshop projects

General arc-welding applications

Actual suitability depends on the electrode type, metal, material thickness, joint preparation and selected welding current.

Welding Safety Guidance

Use an approved welding helmet or properly rated welding mask, welding gloves, protective clothing and suitable footwear.

Carry out welding in a well-ventilated area away from fuel, paint, paper, wood dust, gas cylinders and other flammable materials.

Inspect the power connection, welding cables, holder, earth clamp and connectors before every use.

Never touch exposed conductive components while the machine is connected to electricity.

Disconnect the machine from the electrical supply before inspecting cables, cleaning the unit or changing connections.

Key Features

200A supplier-listed welding current

220V rated voltage

50Hz rated frequency

40% duty cycle

1.6–2.5mm supported electrode diameter

35–50 welding connectors

Supplier-listed 1.5m wire

Electrode holder shown

Earth clamp shown

Handheld welding mask shown

Cleaning brush shown

Portable compact body

Integrated top carrying handle

Corded electric operation

Suitable for fabrication and repair welding

Suitable for workshop and maintenance jobs
