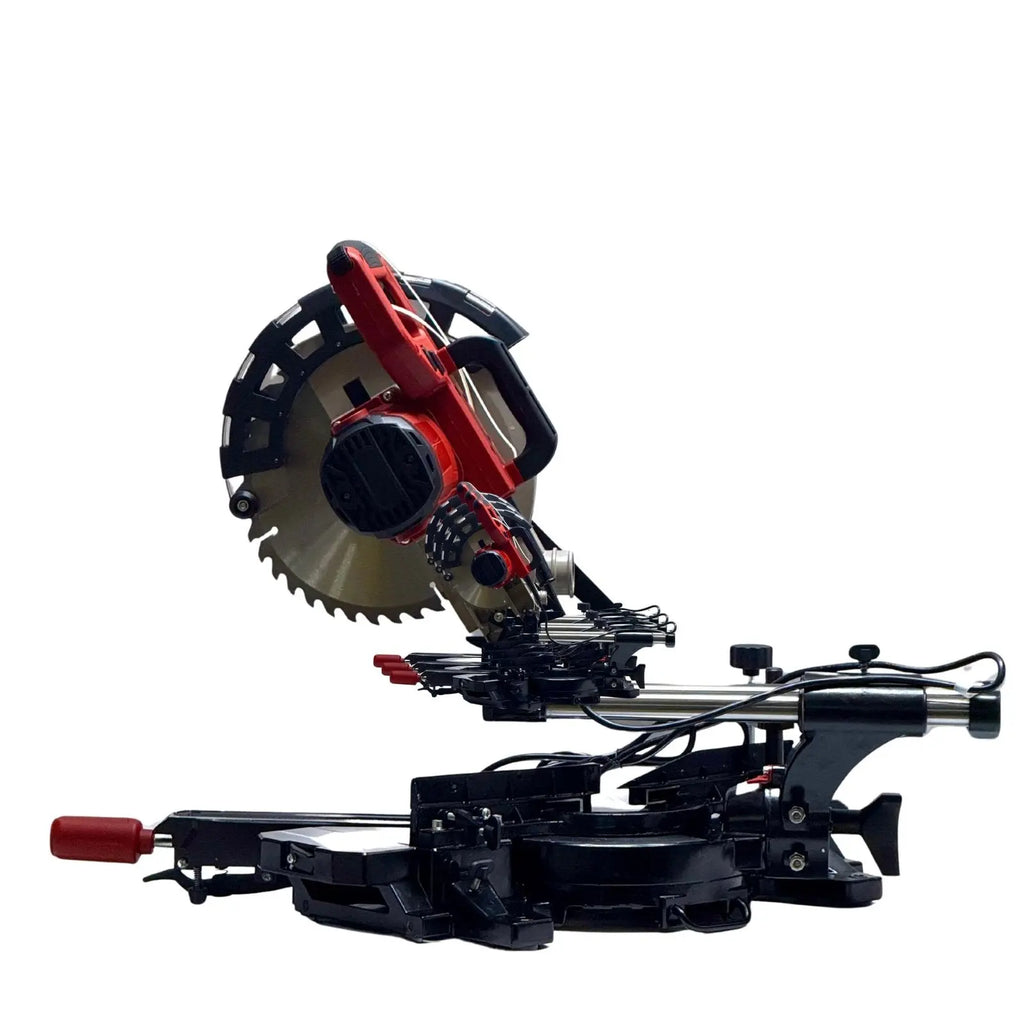

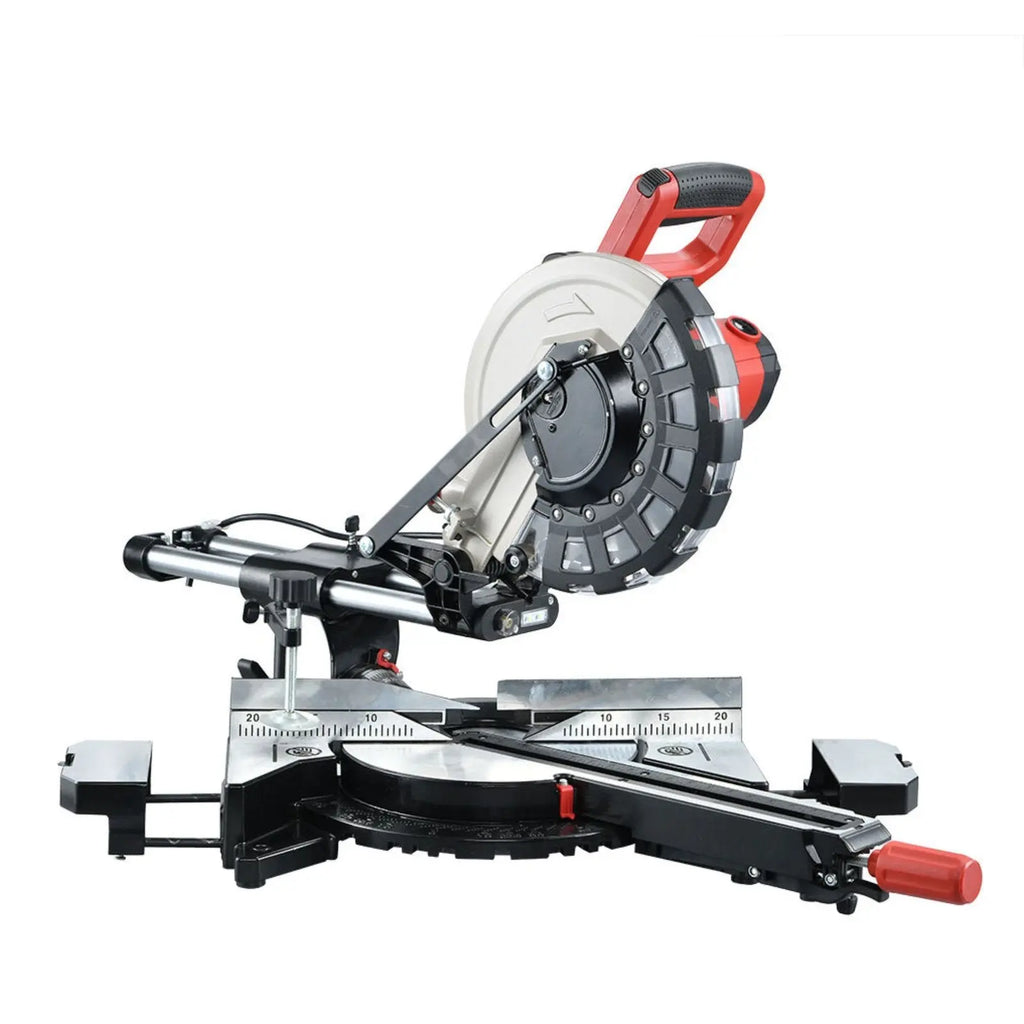

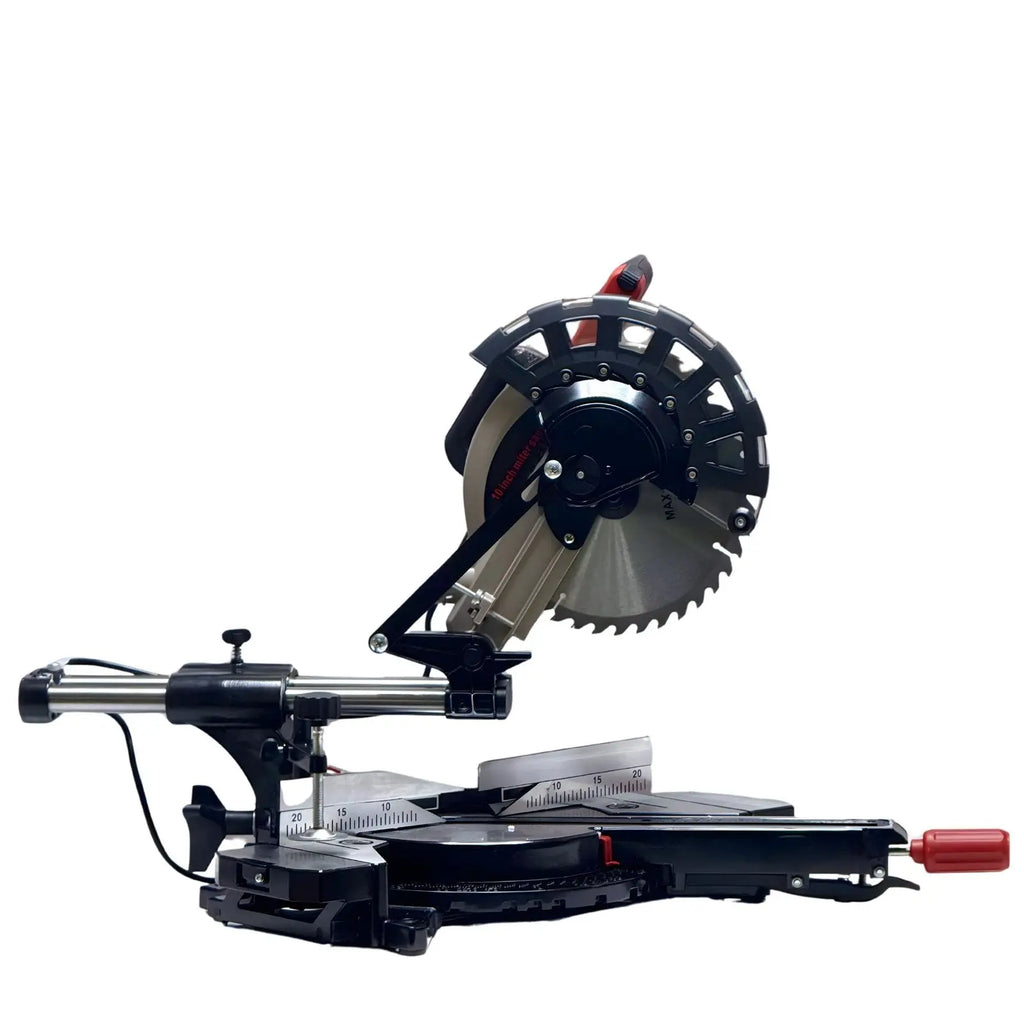

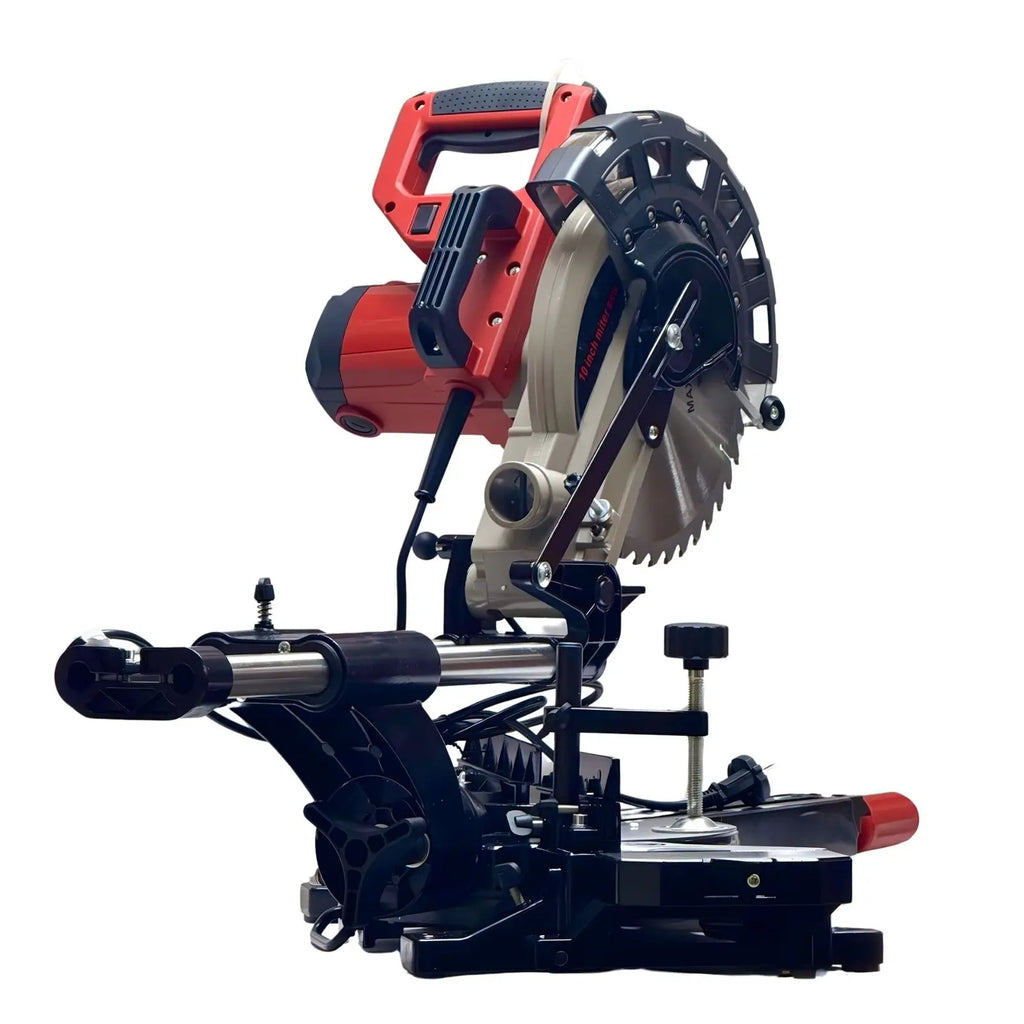

XLNT 255C 2000W 305mm Sliding Mitre Saw

The XLNT 255C is a powerful sliding mitre saw designed for precision cross-cutting, angle cutting, furniture manufacturing, framing, carpentry and professional workshop applications.

The machine is powered by a rated 2000W motor and delivers a listed no-load speed of 3900 RPM. This combination supports fast and controlled cutting through compatible wood, boards, profiles and other materials when the correct blade is installed.

The supplied specification lists a maximum blade diameter of 305mm. The product image also shows a sliding rail mechanism, allowing the cutting head to travel across wider workpieces compared with a basic fixed-head mitre saw.

Its rigid base, adjustable mitre table, material fence and protective blade guard support controlled cutting during suitable workshop operations.

Powerful 2000W Motor

The XLNT 255C is equipped with a rated 2000W motor for demanding cutting applications.

The high-power motor is suitable for:

• Timber cutting
• Furniture manufacturing
• Door and window framing
• Wooden profile cutting
• Skirting-board cutting
• Workshop carpentry
• Interior installation work
• General fabrication preparation

Actual cutting performance depends on the blade type, blade sharpness, workpiece material, cutting depth and power-supply stability.

305mm Maximum Listed Blade Diameter

The supplied specification lists a maximum blade diameter of 305mm.

A larger blade can provide increased cutting depth and capacity compared with smaller mitre-saw blades. However, the final cutting capacity cannot be determined from blade diameter alone.

Before publishing, confirm:

• Actual fitted blade diameter
• Blade bore diameter
• Maximum cutting depth
• Maximum cross-cutting width
• Cutting capacity at 90 degrees
• Cutting capacity at 45 degrees
• Maximum supported blade thickness
• Blade tooth count
• Blade material

Never install a blade larger than the machine’s approved capacity.

Sliding Rail Cutting Mechanism

The supplied product image appears to show a sliding rail system.

A sliding mitre saw allows the cutting head to move forward and backward, helping the operator cut wider boards and profiles.

The sliding mechanism may be useful for:

• Wide wooden boards
• Furniture panels
• Shelving material
• Door frames
• Window frames
• Decorative mouldings
• Flooring boards
• Timber sections

Keep the sliding rails clean and free from sawdust for smooth movement.

3900 RPM No-Load Speed

The XLNT 255C has a listed no-load speed of 3900 RPM.

No-load speed refers to the blade speed when the machine is running without cutting material.

The actual blade speed under load may vary according to:

• Material hardness
• Workpiece thickness
• Blade condition
• Feed pressure
• Electrical-supply stability
• Cutting angle
• Blade tooth configuration

Allow the blade to reach full speed before bringing it into contact with the workpiece.

220V, 50Hz Electrical Operation

The machine operates on a listed 220V electrical supply at 50Hz.

Before use, confirm that the electrical installation includes:

• Properly rated circuit breaker
• Suitable plug and socket
• Correct electrical earthing
• Adequate power-cable capacity
• Stable voltage supply
• Correctly rated extension cable
• Secure electrical connections

Avoid using thin or excessively long extension cables because voltage drop may reduce motor performance and increase heating.

Precision Cross-Cutting

The mitre saw is designed for straight cross cuts across compatible wooden boards, profiles and timber sections.

For cleaner cross cuts:

• Secure the workpiece firmly
• Keep the material against the fence
• Use a sharp blade
• Allow the blade to reach full speed
• Lower the cutting head steadily
• Avoid forcing the blade
• Wait for the blade to stop before lifting it fully

Adjustable Mitre-Angle Cutting

The rotating base allows the operator to position the workpiece for suitable angle cuts.

Mitre cutting is commonly used for:

• Picture frames
• Door frames
• Window frames
• Furniture joints
• Decorative mouldings
• Skirting boards
• Cornice work
• Interior finishing

The exact mitre-angle range and positive-stop positions are not stated and should be added after verification.

Bevel-Cutting Capability Requires Confirmation

The supplied image suggests that the cutting head may support angular adjustment, but the exact bevel range is not provided.

Before advertising bevel or compound cutting, confirm:

• Maximum left bevel angle
• Maximum right bevel angle
• Single-bevel or dual-bevel operation
• Bevel locking system
• Cutting capacity at combined mitre and bevel angles

Do not advertise dual-bevel or compound-cutting capability unless physically confirmed.

Heavy-Duty Stable Base

The machine includes a wide base designed to support stable placement during cutting.

For safe and accurate operation:

• Place the machine on a level surface
• Secure it to a workbench where possible
• Support long workpieces
• Keep the base free from loose material
• Confirm that all adjustment locks are tightened
• Avoid operating on unstable tables

Material Fence and Workpiece Support

The rear fence helps position the workpiece during straight and angled cutting.

The workpiece should remain firmly against the fence and base throughout the cut. Long or flexible materials require additional external support.

Never hold small pieces too close to the blade by hand.

Protective Blade Guard

The machine includes a blade-guard system designed to cover the blade during normal operation.

Before every use, check that:

• The guard moves freely
• The guard returns automatically
• No sawdust blocks the mechanism
• The guard is not cracked
• The blade does not contact the guard
• The guard has not been removed or modified

Never operate the saw without the blade guard.

Suitable for Wood Cutting

The XLNT 255C is primarily suitable for compatible woodworking applications.

Potential materials include:

• Natural wood
• Softwood
• Hardwood within machine capacity
• Plywood
• MDF
• Laminated boards
• Furniture panels
• Wooden profiles
• Decorative mouldings

Blade selection must match the material being cut.

Aluminium-Profile Cutting Requires the Correct Blade

The saw may be used for compatible aluminium profiles only when the manufacturer permits it and the correct non-ferrous-metal blade is installed.

Do not use a standard wood-cutting blade for aluminium unless the blade manufacturer specifically approves it.

For aluminium cutting:

• Use the correct blade
• Clamp the material securely
• Follow the blade manufacturer‚Äôs instructions
• Avoid cutting solid sections beyond capacity
• Use suitable lubrication only when approved
• Wear eye and face protection
• Remove metal chips regularly

Do not advertise general metal cutting or steel cutting unless the machine and blade are specifically approved for those materials.

Suitable for Furniture Manufacturing

The mitre saw can support furniture-production work involving:

• Wooden frames
• Cabinet components
• Table and chair parts
• Shelving
• Decorative profiles
• Furniture mouldings
• Panel framing
• Repetitive cross cuts

Suitable for Interior Contractors

The machine is suitable for compatible interior-installation work such as:

• Skirting boards
• Wooden trims
• Decorative mouldings
• Door frames
• Window frames
• Wall panels
• Flooring sections
• Furniture installation

Suitable for Carpentry Workshops

The 2000W motor, sliding mechanism and adjustable table make the machine relevant for professional carpenters and workshop users handling regular cutting jobs.

Continuous workshop suitability depends on the verified motor duty rating, blade condition, ventilation and cutting workload.

Do not advertise unlimited continuous operation without an official duty rating.

Cutting Accuracy

Accurate cutting depends on correct machine setup.

Before production cutting:

• Check blade alignment
• Check fence alignment
• Confirm table-angle calibration
• Test the cut on scrap material
• Tighten all adjustment locks
• Check blade runout
• Confirm the workpiece is flat
• Use suitable clamps

Dust Management

Mitre saws generate significant sawdust during operation.

Confirm whether this model includes:

• Dust bag
• Dust-extraction port
• Vacuum adaptor
• Dust chute
• Compatible hose size

Use workshop dust extraction whenever possible. A dust bag or vacuum connection should not be listed as included unless physically supplied.

How to Use

• Place the mitre saw on a stable and level workbench.
• Secure the machine where possible.
• Check the blade, guard, fence and adjustment locks.
• Set the required mitre angle.
• Set the bevel angle when supported and required.
• Place the material firmly against the fence.
• Clamp the workpiece securely.
• Support long material at the same height as the saw table.
• Connect the machine to a correctly rated 220V supply.
• Stand away from the blade‚Äôs cutting line.
• Allow the blade to reach full speed.
• Lower the cutting head gradually.
• Move the sliding head smoothly where required.
• Avoid excessive cutting pressure.
• Release the trigger after completing the cut.
• Allow the blade to stop before raising the head.
• Disconnect the machine before adjustments or blade changes.

Safety Instructions

• Wear approved eye protection.
• Use hearing protection.
• Wear a suitable dust mask or respirator.
• Avoid loose clothing and jewellery.
• Keep hands away from the blade.
• Use clamps whenever possible.
• Never reach behind the blade while it is moving.
• Do not cut unsupported material.
• Do not remove the blade guard.
• Disconnect power before changing the blade.
• Use only compatible blades.
• Confirm the blade‚Äôs rated RPM exceeds the machine speed.
• Do not cut steel with a wood blade.
• Keep the working area clean.
• Remove adjustment tools before starting.
• Do not operate the machine in wet conditions.
• Allow the blade to stop completely before removing offcuts.
• Internal repairs should be performed by qualified technicians.

Maintenance Instructions

• Disconnect the machine before maintenance.
• Remove sawdust after each use.
• Clean the sliding rails regularly.
• Inspect the blade for damage and dull teeth.
• Check the blade guard for free movement.
• Inspect the power cable and plug.
• Tighten loose fasteners.
• Check the fence and table alignment.
• Keep ventilation openings clear.
• Lubricate sliding parts only as recommended.
• Replace damaged blades immediately.
• Store the machine in a clean and dry location.
• Arrange professional servicing when abnormal noise, vibration or heating occurs.
