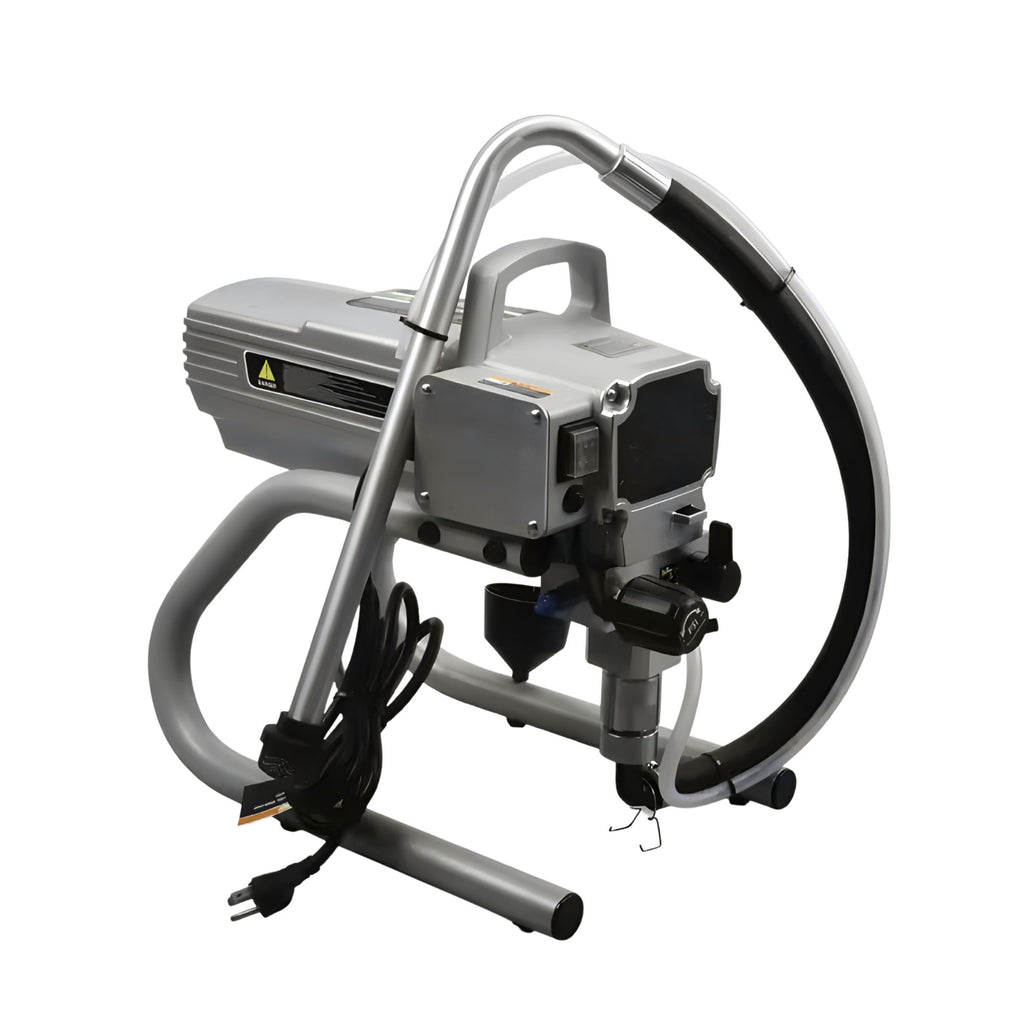

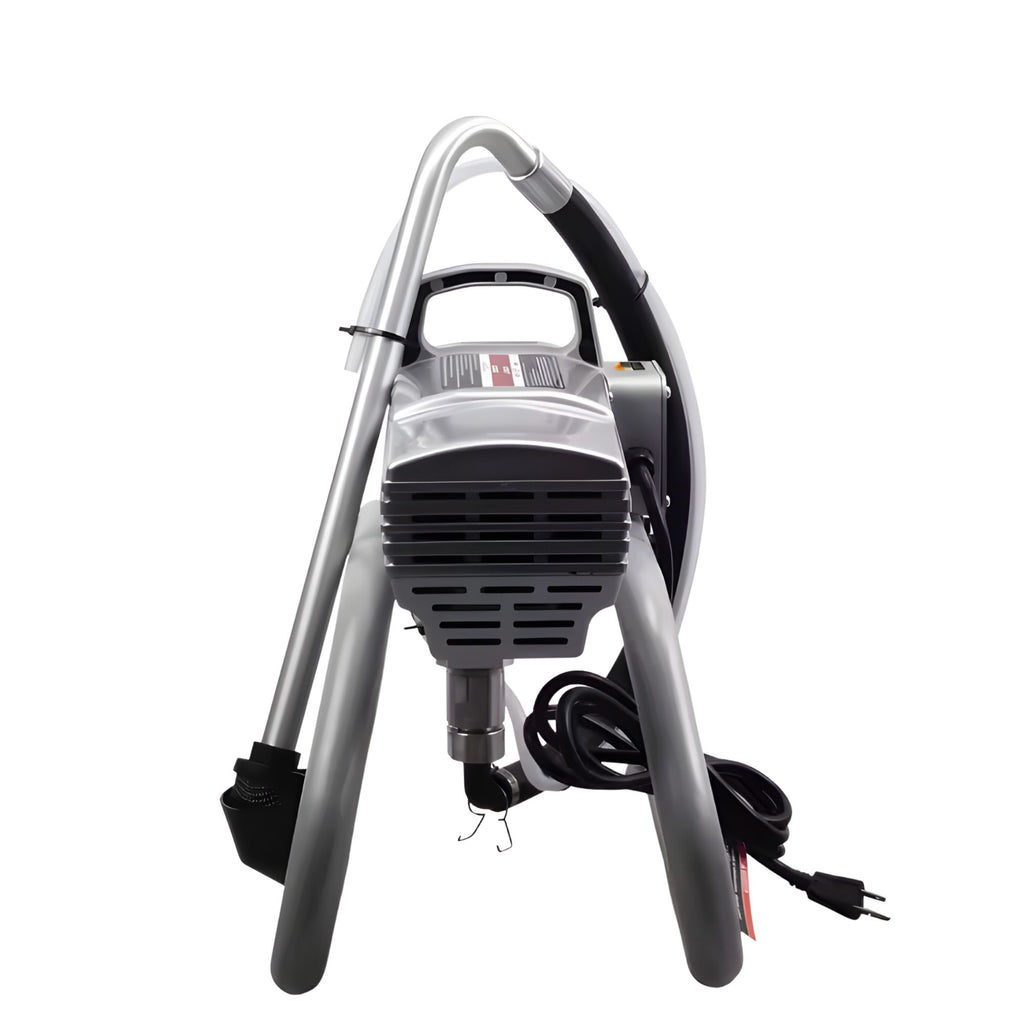

XLNT XTAS106(450) Professional Airless Paint Sprayer

The XLNT XTAS106(450) airless paint sprayer is a professional electric painting machine designed for wall painting, large-surface coating, commercial repainting, renovation work and suitable industrial painting applications.

The machine provides a listed flow rate of 2.2 litres per minute, allowing faster material delivery across compatible large surfaces. It uses airless spray technology, which pumps coating material through a high-pressure hose and spray nozzle without requiring a separate air compressor.

The current product page lists a 517 spray nozzle, 7.6-metre high-pressure hose, 220V operation and maximum pressure of 3300 PSI. It positions the machine for professional painters, contractors and interior or exterior renovation teams.

The supplied specification image separately lists a 2000W motor, 3000 PSI maximum pressure, 220V at 50Hz, 50-metre maximum connection and an overall weight of 18kg. These conflicting power, pressure and weight values should be confirmed from the physical rating plate before publication.

Airless Spray Technology

The XTAS106(450) uses airless spray technology instead of compressed-air atomisation.

In an airless system, the coating material is pumped under pressure through a small nozzle opening. This creates a spray pattern suitable for covering compatible large surfaces efficiently.

Potential benefits include:

• Faster surface coverage
• Reduced dependence on an air compressor
• Consistent material delivery
• Suitable reach for walls and ceilings
• Controlled spray-pattern production
• Practical operation across larger work areas
• Reduced manual rolling and brushing time
• Suitable application for professional painting teams

Final finish quality depends on the selected nozzle, coating viscosity, pressure setting, surface preparation and operator technique.

2.2 L/min High-Flow Output

The machine has a listed maximum flow rate of 2.2 litres per minute.

Flow rate refers to the quantity of compatible coating material the machine can deliver under specified operating conditions.

Actual flow may vary according to:

• Coating viscosity
• Nozzle size
• Pressure setting
• Hose length
• Filter condition
• Suction-pipe condition
• Coating temperature
• Pump wear
• Material preparation
• Electrical-supply stability

A high listed flow rate supports faster coverage, but the final application rate must be adjusted to prevent runs, sagging and excessive coating thickness.

Maximum Pressure Requires Verification

The supplied image lists a maximum pressure of 3000 PSI, while the product page lists 3300 PSI.

Recommended temporary specification:

Maximum Listed Pressure: 3000-3300 PSI

Final Maximum Pressure: Verify from Physical Rating Plate

High-pressure airless spray can inject coating material through the skin. Never point the spray gun at a person, body part or animal.

Do not operate the machine without:

• Trigger-lock inspection
• Correct spray-tip guard
• Properly rated hose
• Secure hose connections
• Approved grounding arrangement
• Suitable personal protective equipment

Motor Power Requires Verification

The live product page currently lists 1000W or 1.6 HP, while the supplied specification image states 2000W.

Recommended temporary specification:

Motor Power: Verify from Machine Rating Plate

Do not calculate generator capacity, circuit-breaker rating or electrical load using either value until the correct motor power is verified.

220V, 50Hz Electrical Operation

The supplied image lists:

Rated Voltage: 220V

Frequency: 50Hz

Before operation, ensure that the electrical installation includes:

• Correctly rated circuit breaker
• Suitable plug and socket
• Proper electrical earthing
• Adequate power-cable size
• Stable voltage supply
• Secure electrical connections
• Properly rated extension cable
• Residual-current protection where required

The rated input current is not stated. Do not recommend a specific plug, circuit breaker or generator until the rating plate is checked.

517 Airless Spray Nozzle

The product page lists a 517 spray nozzle as part of the spray system and package contents.

In common airless-tip identification, the first digit is generally related to fan width and the final two digits are generally related to the opening size. However, actual spray width and coating compatibility depend on the tip manufacturer, spraying distance, pressure and material.

Recommended specification wording:

Included Spray Tip: 517

Before using the nozzle, confirm:

• Suitable coating types
• Maximum operating pressure
• Tip orientation
• Tip-guard compatibility
• Filter-mesh requirement
• Reversible cleaning function
• Replacement-tip compatibility

Do not use a worn nozzle because it can produce an uneven pattern, excessive material flow and poor atomisation.

7.6m High-Pressure Hose Included

The product page lists a 7.6-metre high-pressure hose in the package.

This length provides useful reach for:

• Interior wall painting
• Exterior wall painting
• Ceiling work
• Room-to-room painting
• Commercial repainting
• Renovation work
• Large-panel coating
• Workshop applications

Before every use, inspect the hose for:

• Cuts
• Bulges
• Abrasion
• Exposed reinforcement
• Loose fittings
• Paint leakage
• Crushed sections
• Heat damage

Never repair a high-pressure paint hose using tape, clamps or temporary fittings.

Maximum 50m Connection Requires Confirmation

The supplied image states:

Longest Connection: 50m

This may refer to the maximum supported high-pressure hose length.

Recommended wording:

Maximum Listed Hose Connection: Up to 50 Metres

Included Hose Length: 7.6 Metres

Longer hoses may reduce pressure and material delivery. Only use approved high-pressure hose extensions that match the machine's connector type and pressure rating.

83 MPa Hose-Pressure Listing

The current page lists a maximum hose pressure of 83 MPa.

This appears to be the hose’s pressure rating rather than the machine’s normal spray pressure. Confirm the value from the hose marking before adding it to the main specifications.

Do not confuse:

• Machine operating pressure
• Machine maximum pressure
• Hose working-pressure rating
• Hose burst-pressure rating

Recommended temporary wording:

High-Pressure Hose Rating: Verify from Hose Marking

Direct Paint Suction System

The supplied image shows a suction pipe and return or priming pipe designed to draw compatible coating material from an external container.

This setup can support longer painting sessions without repeatedly filling a small paint cup.

Before spraying:

• Mix the coating thoroughly
• Follow the coating manufacturer's thinning instructions
• Filter the coating
• Place the suction tube securely in the material
• Place the return tube correctly during priming
• Confirm that the inlet filter is clean
• Remove air from the system
• Check all connections for leakage

Do not operate the pump dry for extended periods.

Pressure-Adjustment Control

The machine appears to include an adjustable pressure-control system.

Pressure should be set according to:

• Nozzle size
• Coating viscosity
• Spray-pattern quality
• Hose length
• Surface type
• Required finish
• Spraying distance
• Ambient temperature

Start at a lower pressure and increase gradually until the spray pattern becomes even.

Excessive pressure may cause:

• Increased overspray
• Faster nozzle wear
• Higher material consumption
• Greater hose stress
• Poor transfer efficiency
• Excessive paint mist

Pressure Gauge Shown

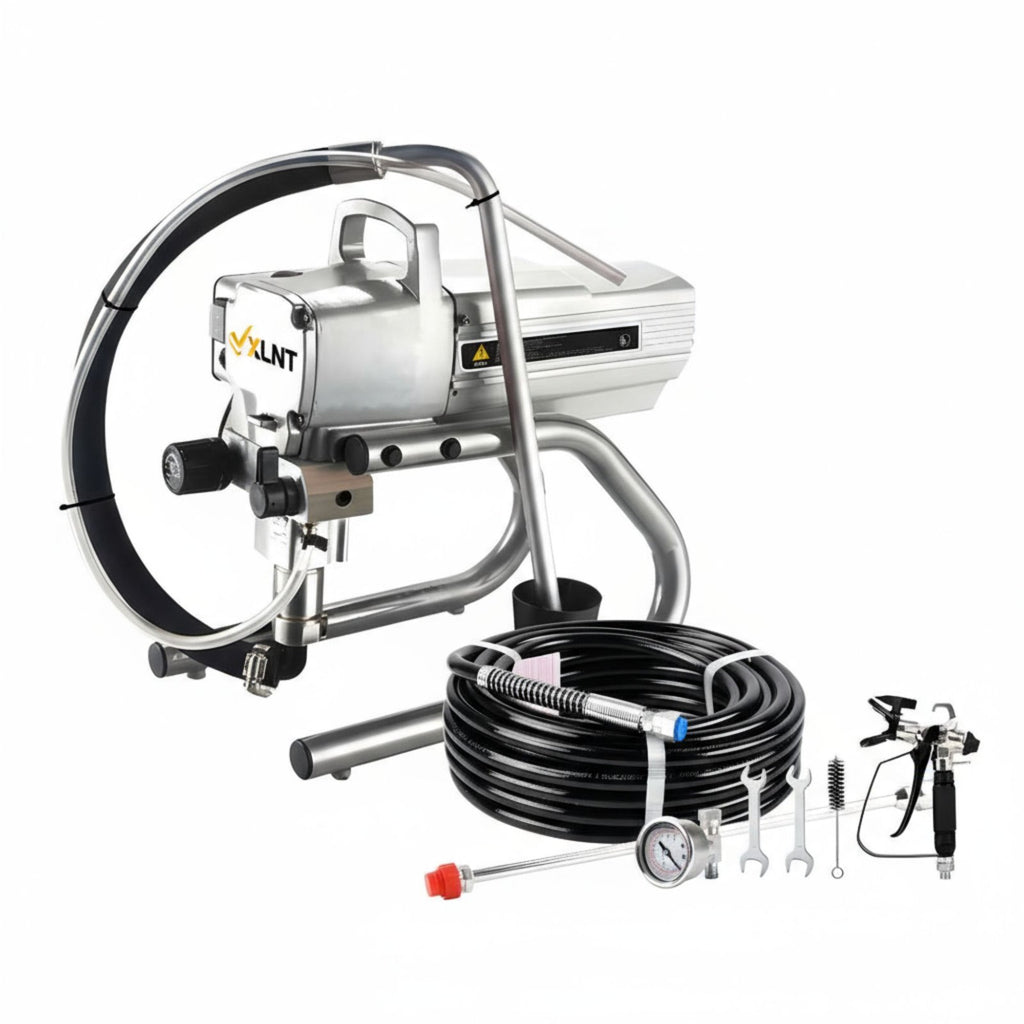

The supplied image appears to show a pressure gauge among the machine or accessory components.

Before publishing this as an included feature, confirm:

• Whether the gauge is installed on the unit
• Gauge measurement range
• PSI or MPa display
• Connection type
• Accuracy class
• Whether it is supplied separately

Recommended temporary wording:

Pressure Gauge: Verify Package Inclusion

Suitable for Wall Painting

The XTAS106(450) is positioned for wall painting and large-surface coating.

It may be suitable for compatible applications involving:

• Interior walls
• Exterior walls
• Ceilings
• Commercial buildings
• Residential repainting
• Renovation projects
• Large partitions
• Suitable industrial surfaces

Surface preparation remains essential. Remove loose paint, dust, grease and contaminants before applying a new coating.

Suitable for Interior and Exterior Renovation

The long hose and high listed material flow support painting across larger renovation areas.

For interior projects:

• Cover floors and furniture
• Mask doors, windows and switches
• Maintain adequate ventilation
• Control overspray
• Use suitable respiratory protection
• Test the spray pattern before starting

For exterior projects:

• Avoid spraying in strong wind
• Protect nearby vehicles and property
• Monitor weather conditions
• Keep electrical equipment dry
• Use stable access equipment
• Avoid spraying near people or animals

Suitable for Commercial Repainting

The product page lists commercial repainting as an intended use.

Potential applications include compatible repainting of:

• Offices
• Shops
• Warehouses
• Commercial rooms
• Building interiors
• Exterior walls
• Workshops
• Rental properties
• Renovation projects

Actual productivity depends on coating preparation, masking time, nozzle size, pressure setting and operator experience.

Suitable for Professional Painters and Contractors

The machine is positioned for professional painters, contractors and renovation teams.

The portable frame and hose-based spray system can support movement across suitable work areas. However, professional suitability does not mean unlimited continuous operation.

The page currently states that the machine is designed for continuous professional painting. This claim should be retained only when the pump duty cycle, cooling requirement and maximum continuous operating period are confirmed.

Safer wording:

Designed for Regular Professional Painting with Appropriate Cleaning and Cooling Breaks

Paint Compatibility

The available specifications do not provide an exact list of compatible coating materials.

Before spraying any coating, confirm:

• Material compatibility with airless application
• Recommended tip size
• Recommended pressure
• Required thinning ratio
• Filter requirement
• Cleaning solvent
• Maximum material viscosity
• Flammability precautions

Do not spray textured, highly abrasive or solvent-based materials unless the machine, hose, seals, nozzle and motor system are approved for them.

Priming the Machine

Before spraying:

• Place the machine on a stable surface.
• Connect the high-pressure hose securely.
• Connect the spray gun and nozzle guard.
• Place the suction tube into the prepared coating.
• Place the return tube into a suitable container.
• Set the machine to prime or return mode.
• Start at low pressure.
• Allow material to circulate until air is removed.
• Switch to spray mode.
• Test the pattern on scrap material.
• Increase pressure only as required.

Follow the machine manual for the exact priming sequence.

Correct Spraying Technique

For a more uniform finish:

• Hold the spray gun perpendicular to the surface.
• Maintain a consistent spraying distance.
• Begin moving before pulling the trigger.
• Release the trigger before stopping movement.
• Keep the gun moving at a steady speed.
• Overlap each pass evenly.
• Avoid swinging the gun in an arc.
• Use multiple controlled coats where required.
• Test settings before coating the final surface.

Uneven speed or changing spray distance can cause inconsistent coating thickness.

Cleaning After Use

Airless paint sprayers should be cleaned immediately after use.

Recommended general cleaning process:

• Engage the trigger lock.
• Switch off and disconnect the machine.
• Release system pressure safely.
• Remove the spray nozzle.
• Clean the nozzle separately.
• Place the suction tube into a compatible cleaning liquid.
• Flush the pump, hose and gun.
• Clean the inlet filter.
• Clean the spray-gun filter where fitted.
• Continue flushing until the discharge is clean.
• Release remaining pressure.
• Store the hose without sharp bends.
• Follow the coating manufacturer‚Äôs disposal instructions.

Use only a cleaning liquid compatible with the sprayed coating and machine seals.

Pressure-Release Safety

Before cleaning, servicing, removing the nozzle or disconnecting the hose:

• Switch off the machine.
• Disconnect the power supply.
• Engage the spray-gun trigger lock.
• Turn the pressure control to minimum.
• Set the system to the recommended pressure-release mode.
• Hold the gun against an approved grounded container.
• Release the remaining pressure.
• Confirm that the system is fully depressurised.

Never loosen a high-pressure fitting while the system is pressurised.

Safety Instructions

• Never point the spray gun at people or animals.
• Never place fingers near the spray tip.
• Always use the nozzle guard.
• Engage the trigger lock when not spraying.
• Wear approved eye protection.
• Wear gloves and protective clothing.
• Use a respirator suitable for the coating.
• Maintain proper ventilation.
• Keep the machine correctly grounded.
• Do not spray near flames or sparks.
• Follow the coating safety data sheet.
• Inspect the hose before every use.
• Never exceed the verified pressure rating.
• Disconnect power before servicing.
• Release pressure before removing the nozzle.
• Keep children and untrained persons away.
• Do not operate in rain or standing water.
• Use approved equipment for flammable coatings.
• Internal repairs should be handled by qualified technicians.

Maintenance Instructions

• Clean the pump after every use.
• Clean the suction filter regularly.
• Clean the gun and nozzle.
• Inspect the high-pressure hose.
• Check all fittings for leakage.
• Keep the motor ventilation openings clear.
• Inspect the power cable and plug.
• Lubricate components only as instructed.
• Replace worn spray tips.
• Do not store coating material inside the machine.
• Protect the pump from corrosion.
• Store the hose without sharp bends.
• Keep the unit in a clean and dry location.
• Arrange professional servicing if pressure becomes unstable.
• Stop operation if unusual noise, heating or leakage occurs.
